Kyocera FS-C8500DN Service Manual

2KA
1-5-4

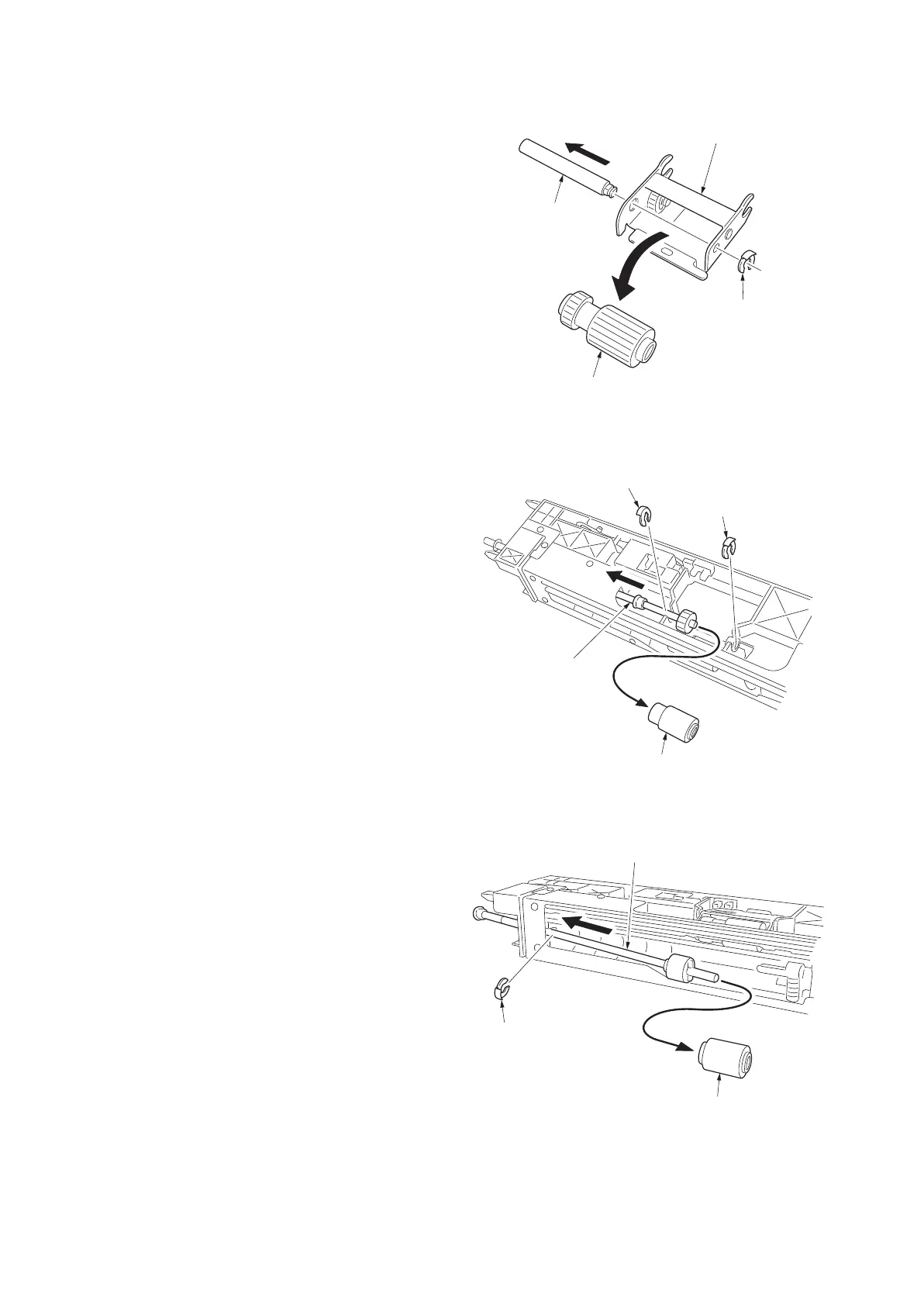

5. Remove the stop ring from the forwarding
pulley retainer.
6. Remove the forwarding pulley from the for-
warding shaft.
Figure 1-5-5
Removing the paper feed pulley
7. Remove two stop rings from the primary
paper feed unit.
8. Pull the paper feed shaft in the direction of
the arrow and remove the paper feed pulley.
Figure 1-5-6
Removing the separation pulley
9. Remove the stop ring from the primary
paper feed unit.
10. Pull the separation shaft in the direction of
the arrow and remove the separation pulley.
Figure 1-5-7
Stop ring
Forwarding shaft
Forwarding pulley retaine
r
Forwarding pulley
Stop ring
Stop ring
Paper feed pulley
Paper feed shaft
Stop ring
Separation pulley
Separation shaft

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
