2KA
1-5-23

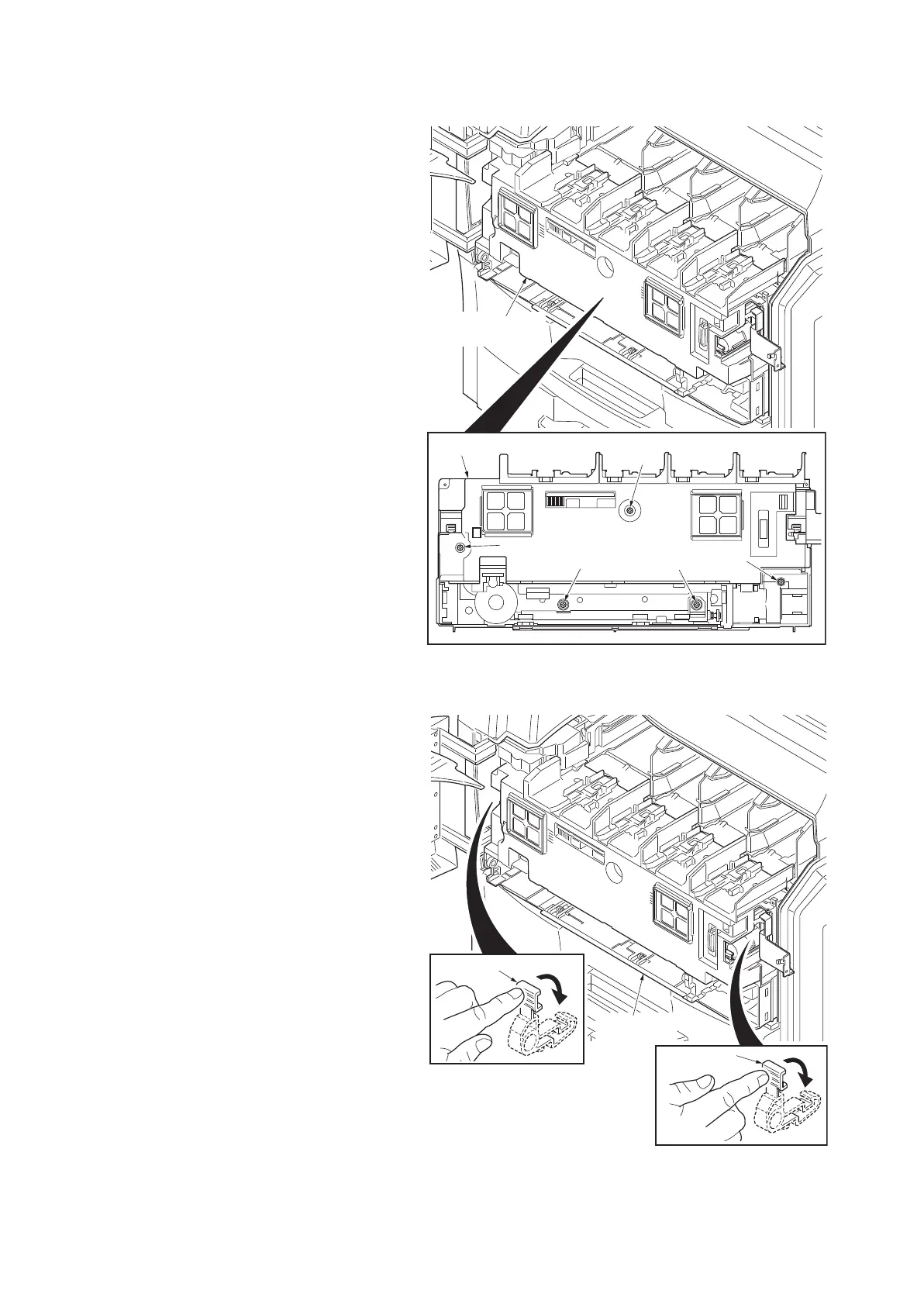

8. Remove five screws of the image formation
holder.
Figure 1-5-40
9. Press the two holder levers to unlock.
Figure 1-5-41
Screw
Image formation
holder
Image formation holder
Screw
Screw
Screw
Screw
formation
holder
Holder lever
Holder lever
