Kyocera FS-C8500DN Service Manual

2KA
1-2-8

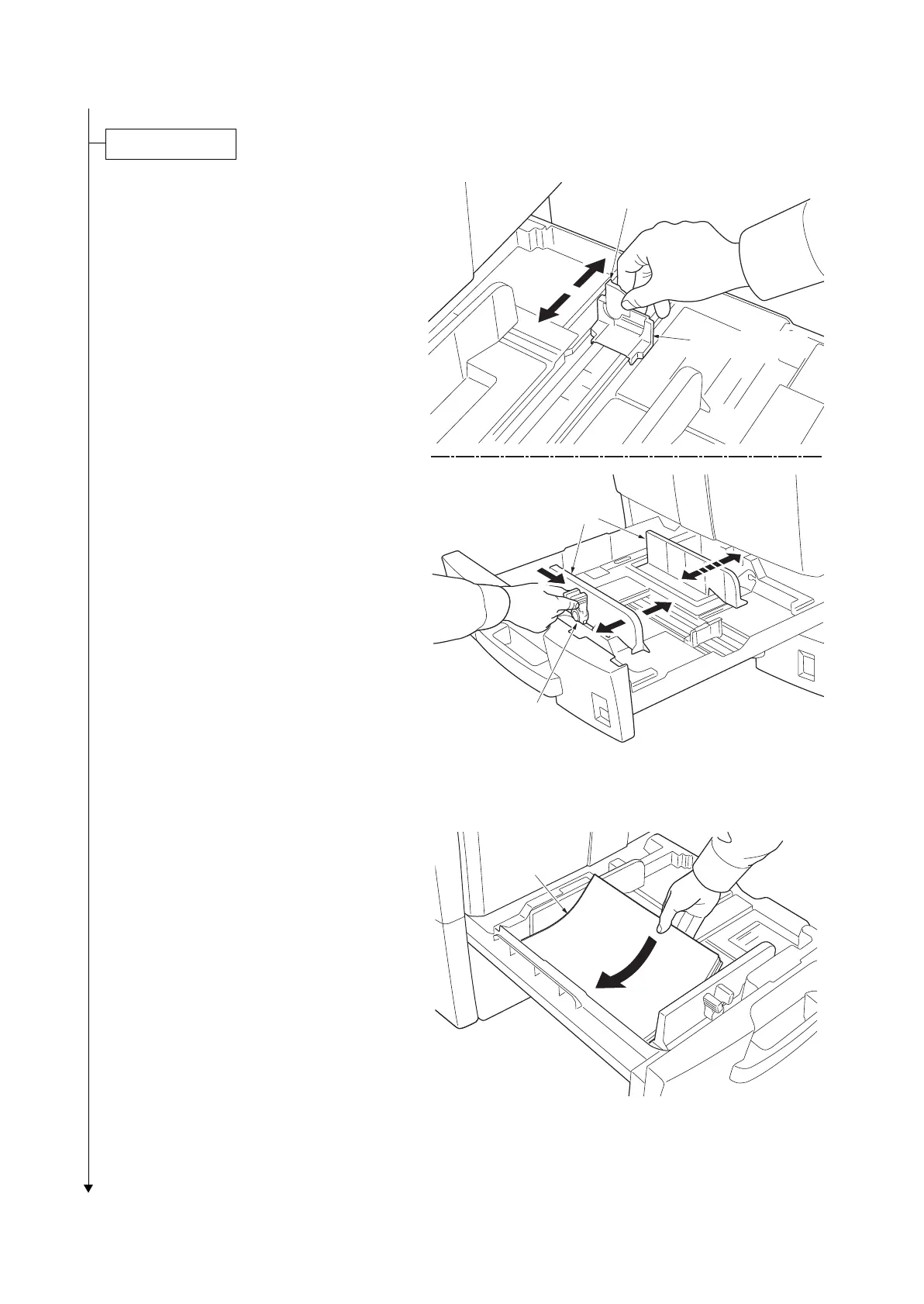

1. Pull the cassette out.
2. Adjust the paper length guide to fit the paper
size.
3. Holding the paper width adjusting tab both
ends, move the paper width guide to fit the
paper.
4. When loading paper smaller than A4 or Let-
ter into cassette 1, raise the support lever as
shown in the figure.
Figure 1-2-9
5. Align the paper flush against the left side of
the cassette.
IMPORTANT: Verify that the paper is
pressed snugly against the vertical and hori-
zontal size guides. If a gap is present, reset
the width guides or length guide.
Before loading the paper, be sure that it is
not curled or folded.
Ensure that the loaded paper does not
exceed the level indicated.
Figure 1-2-10
6. Insert the appropriate size plate in the slot to
indicate the size of the loaded paper.
7. Gently push the cassette back in.
Loading paper.
Support lever
Paper width
guides
Paper width
adjusting tab
Paper length guide
Paper

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
