LACO ORIGINAL OPERATING INSTRUCTIONS TITANTEST™
93
© 2018 LACO TECHNOLOGIES, INC. - [TitanTest itna01en1-07 BA.fm] - 1807

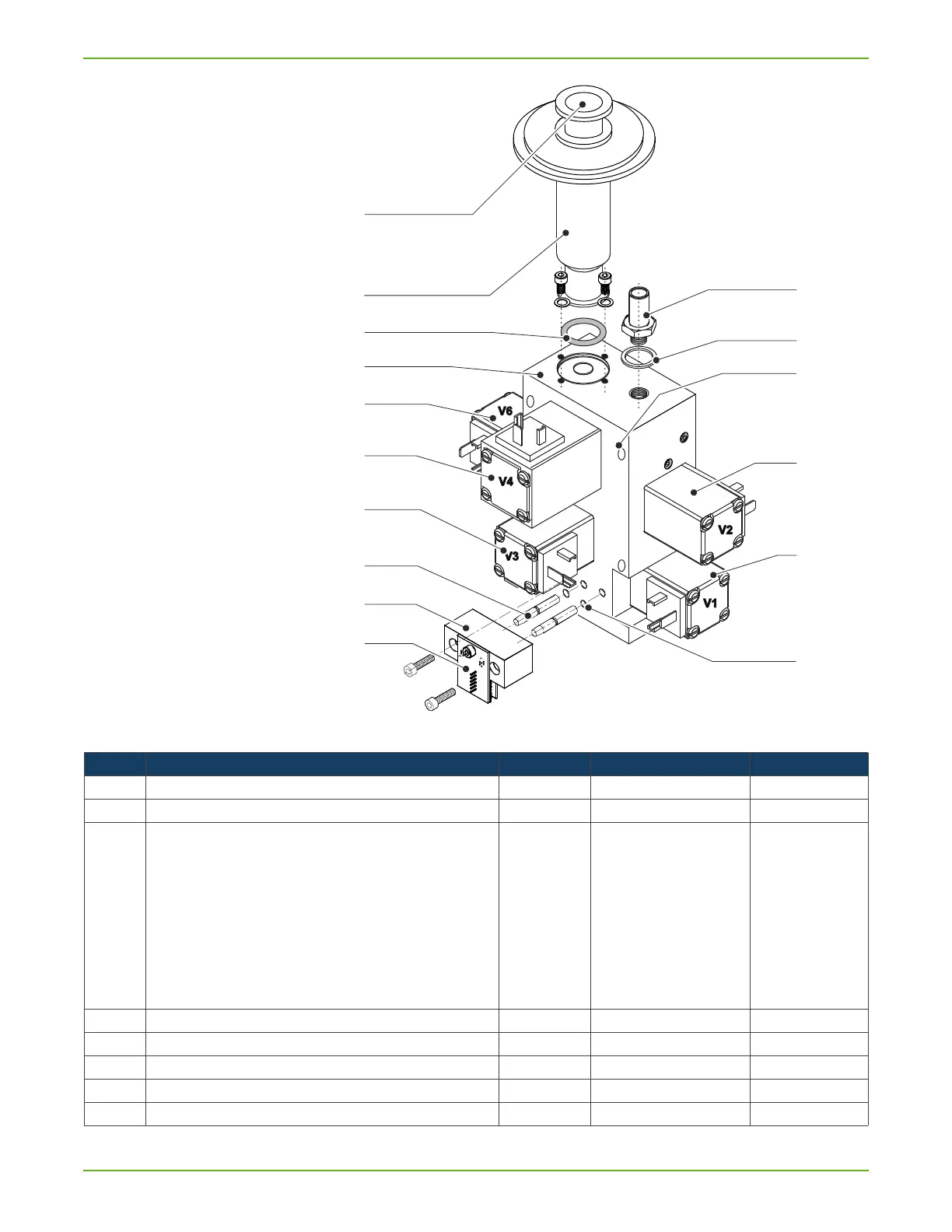

Fig. 37: TITANTEST™ Valve Block
Pos. Description Quantity Specifications Order No.
1 Mesh Inlet Screen 1 T10079
2 Inlet Flange complete 1 T10039
3 Leak Detector Seal Kit
– O-Ring (Inlet Flange- Valve Block)
– O-Ring (Pirani elements)
–O-Ring (TMP - Valve Block)
–O-Ring (TMP - Fore vacuum)
– O-Ring (Adapter flange reference leak)
–Sealing Ring
–Flat Gasket
1
5
5
5
5
5
5
5
19 x 3 mm
3,69 x 1,78 mm
30 x 3,5 mm
13,94 x 2,62 mm
12 x 1,5 mm
R 1/4 IN
41,5 x 55 x 0,5
T10040
4 Valve Block complete with valves (without calibrated leak assembly) 1 T10041
5 Valve V6 2/2 way valve 1 24 V T10042
6 Valve V4 2/2 way valve 1 24 V T10043
7 Valve V3 2/2 way valve 1 24 V T10044
8 Pirani Gauge (each) 1 T10045
