LACO ORIGINAL OPERATING INSTRUCTIONS TITANTEST™

8.5.1 The system at a glance (P-Series only)

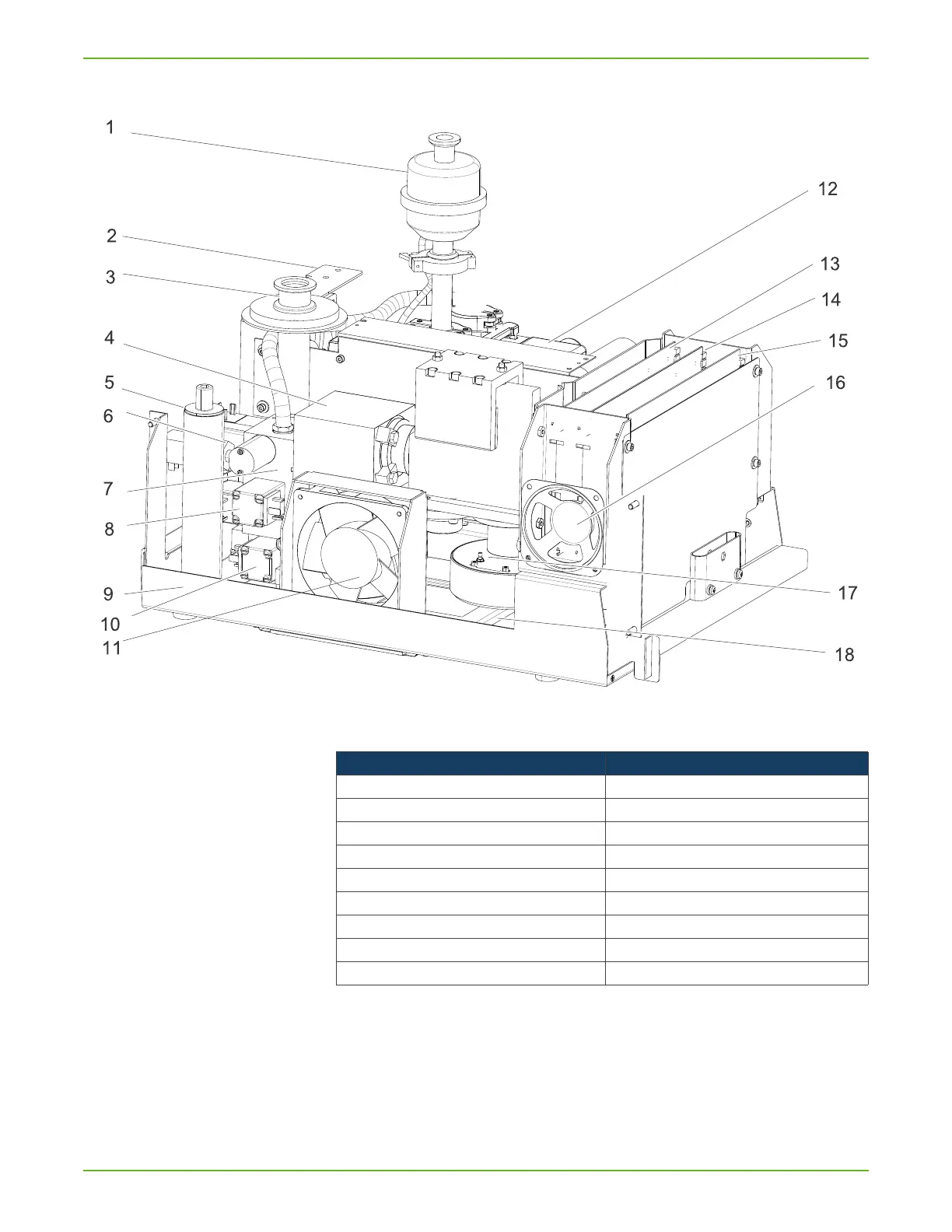

Fig. 19: TITANTEST™

Table 34: The system at a glance

Pos. description Pos. description

1 Oil mist filter (P-Series) 10 Valve V1

2 Holder - fan 2 11 Fan 1

3 Test port 12 Backing pump UNO 006A

4 Turbo pump SplitFlow 80 13 I/O printed circuit board

5 Calibrated leak 14 MC 68 printed circuit board

6 Calibrated leak valve V5 15 MSV printed circuit board

7 Valve block 16 Speaker

8 Valve V2 17 Electrometer amplifier

9 Valve V3 18 Wiring board
