8.5.2 Removing the cover (P-Series only)
For P-Series devices, the external oil mist filter must be removed before re-
moving the cover.

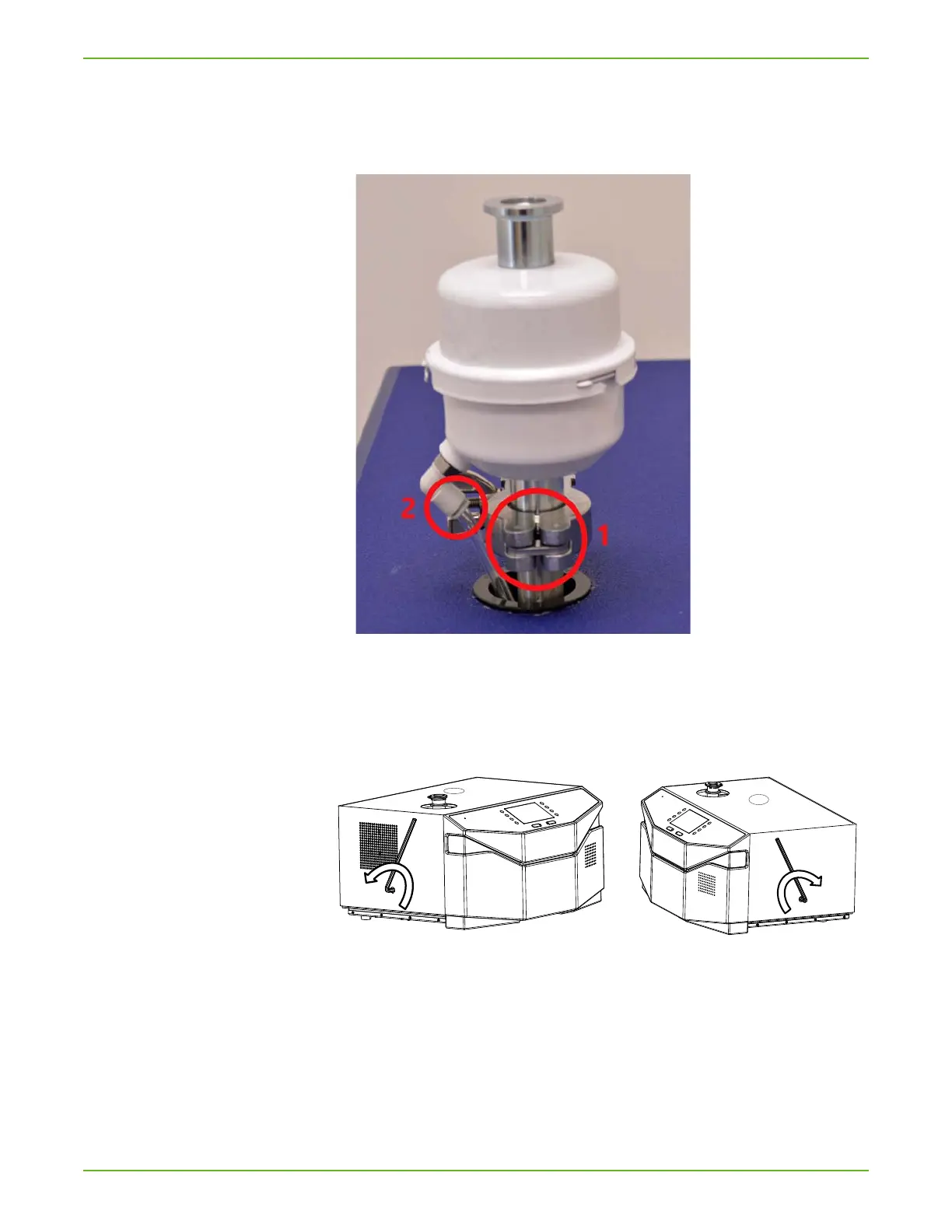

► Disassemble the oil mist filter housing from the KF flange (1).
► Disconnect the 6 mm drain tube from the mist filter drain fitting (2).
► Loosen the cover on the left and right side using an 8 mm Allen wrench.
Note to open the lock on both sides twist towards the back of the device.
Fig. 20: How to remove the cover
After the maintenance replace the cover and secure it with an 8 mm Allen
wrench by turning it in the other direction.
