LACO ORIGINAL OPERATING INSTRUCTIONS TITANTEST™
10
© 2018 LACO TECHNOLOGIES, INC. - [TitanTest itna01en1-07 BA.fm] - 1807

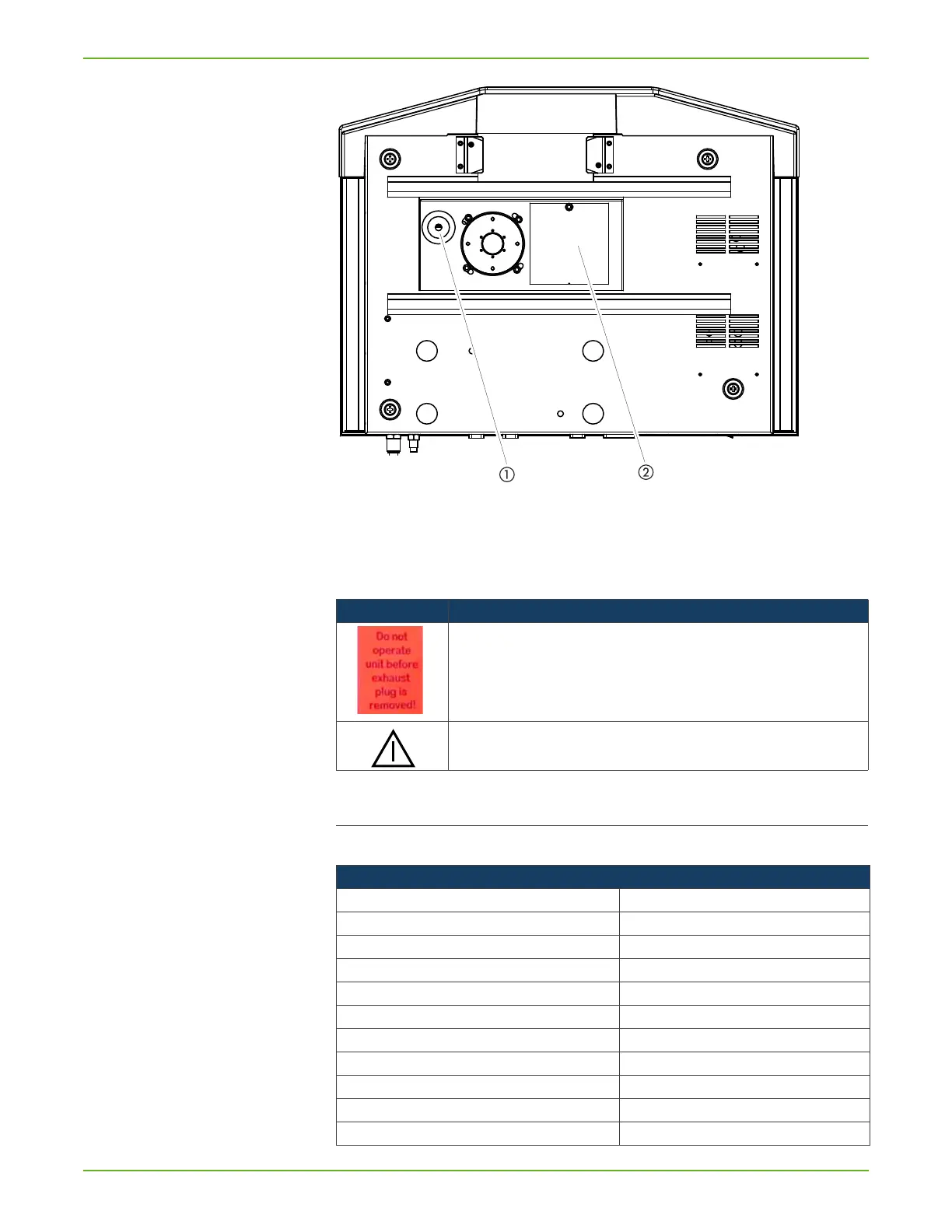

Fig. 4: Bottom view
4.2.1 Markings on the device
4.3 Technical Data
a Screw for connection flange DN 25 ISO-KF b Cover plate for ion source
Marking Meaning
Sticker with note: Do not operate unit before exhaust plug is removed!
Caution: There may be mains voltage!
Table 2: Technical data
Mechanical Data
Basic unit:
Dimensions (length; width; height) 555 x 425 x 305 mm (21.9 x 16.7 x 12 in.)
Weight
Wet Series approx. 44 kg (97 lb.)
Dry Series approx. 34 kg (75 lb.)
Max. permitted acceleration during operation 1 G (horizontal)
Test port DN 25 ISO-KF
Cooling air
Inlet below, with dust filter
Outlet on side
Exhaust port M-Series for hose ø8 mm
