5.5 Mounting the accessories
The accessories are connected on the connection strip on the back of the
device.

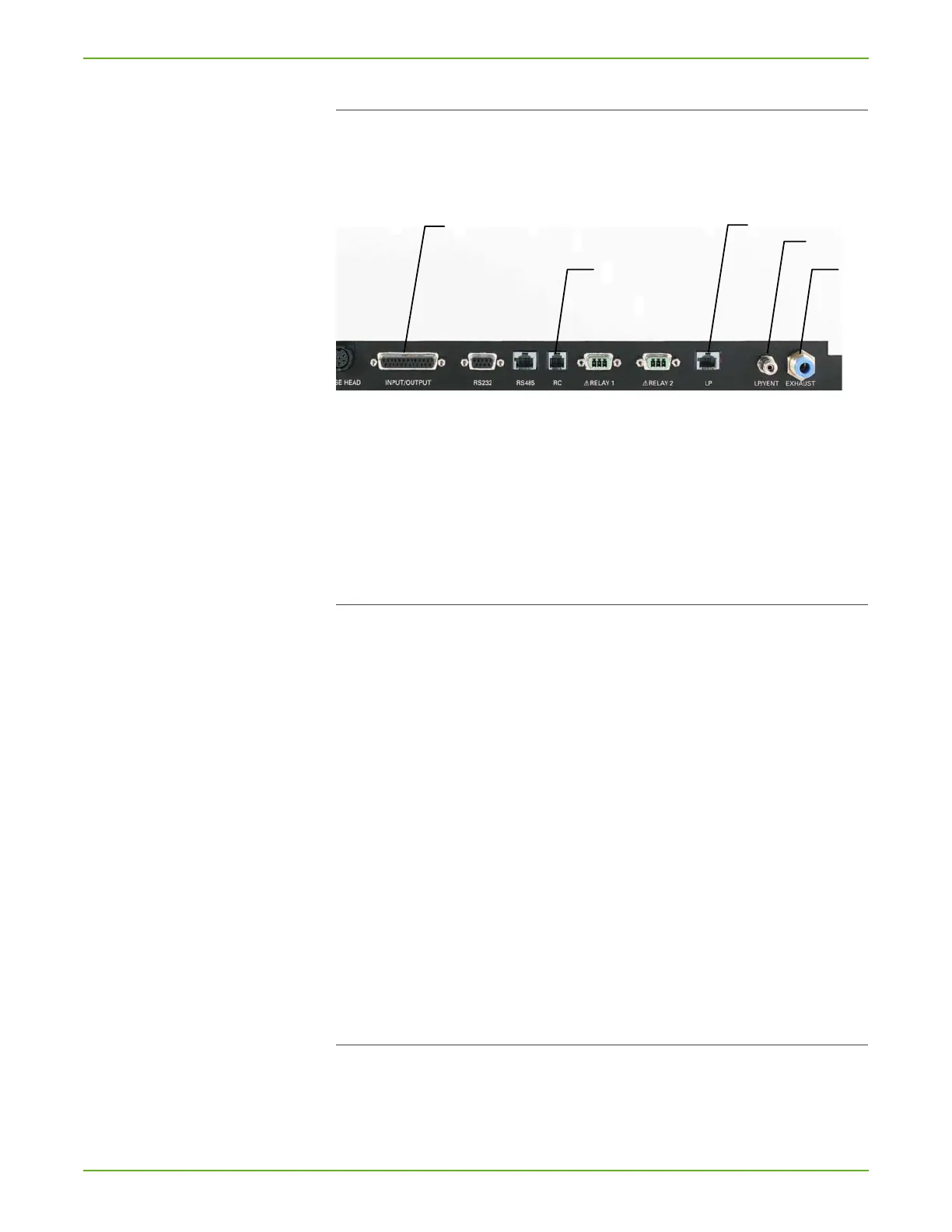

Fig. 5: Connection strip
5.6 Connecting the sniffer line
For sniff mode, the device is connected to a sniffer line.
Connect the sniffer line before you press the "Start/Stop" button. If you re-
move the sniffer line during operation, the device reports an error. The de-
vice also reports an error when the sniffer line is not connected and "Sniff"
operating mode is active.
Mounting the sniffer lines
1. Select the right sniffer line.
2. Attach the sniffer line into the LP/Vent connection for the sniffer probe
(
see Fig. 5, page 19).
3. Insert the RJ45 plug of the sniffer line into the LP connection, if using an
advanced sniffer.
For information on calibration and measurement, see Chapter 6.4.10.2: "Cali-
brate in "Sniff"operating mode", page 51 and see Chapter 6.5.2: "Measuring in
"Sniff" operating mode", page 53.
Should you later wish to switch to vacuum mode, remove the sniffer probe
from the gas connection on the device. The connection is used for venting.
5.7 Remote control
The following remote controls are optionally available for the TITANTEST™:
Remote control TR100, wired
Remote control TR101, wireless
a
b
c
Input / Output
Connection - remote control
Electrical connection for sniffer probe LP
d
e
Gas connection for the sniffer probe or venting line (hose-
nipple ø 6/4 mm)
Devices M-Series with oil sealed backing pump: Pump ex-
haust port for 8 mm OD tubing
Devices P-Series with oil sealed backing pump: Oil drain
Devices TD-Series: Connection for external backing pump
