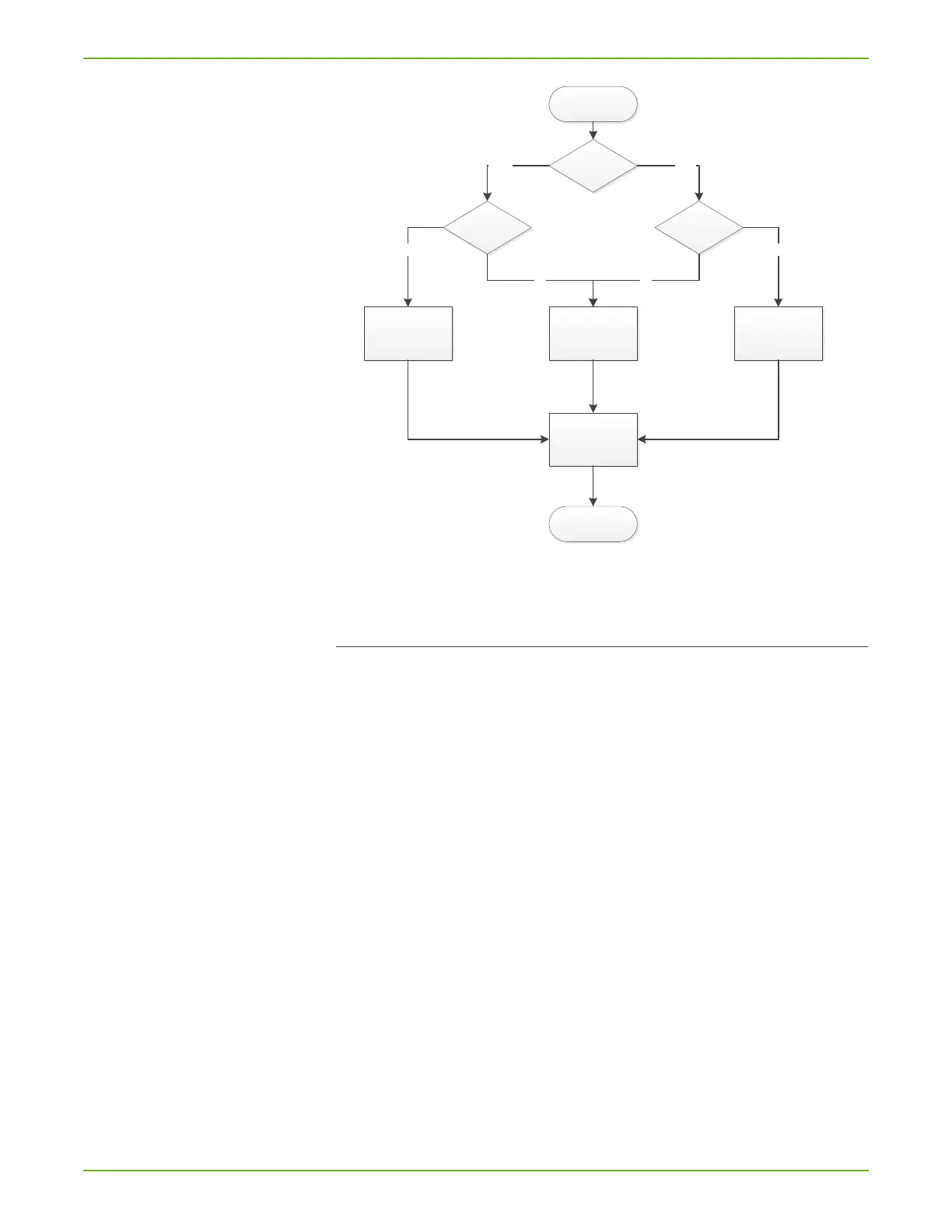

Fig. 13: Page 2 Auto Test Process Diagram
6.4 Settings for the measurements
You must set the following for the measurements:
 Mode & Mass
 Filter & ZERO
 Vacuum ranges
 Evacuation time & Vent
 Gross leak protection
 Pressure limits for sniff mode
 Setpoint and Alarm
 Calibration settings and Calibration
6.4.1 Set operating mode and mass
You can make the following settings:
 Select operating mode
 Select gas (mass)
 Set leakage rate factor
If a menu PIN is required to access the software menu, this function is inac-
cessible until entered.
** Feature not available in TITANTEST™ Maintenance model
From Page 1
Selected Reject
Mode
Is Qmax below
Setpoint?
Qmax
Is Qlast below
Setpoint?
Qlast
Set Part Status to
Pass
Set Part Status to
Fail
Set Part Status to
Pass
YesYes
No No
Standby Screen
Display Qmax or
Qlast & Part Status
(P/F)
End of Cycle
NOTE:
Qmax = maximum helium signal
detected while test is active.
Qlast = the last value of the helium
signal before the cycle ended (by test
timer expiration or pressing the Stop
button).
NOTE: See Reject Mode
Option (End of Test or
Maximum)
