8.4.1 The system at a glance (M-Series only)

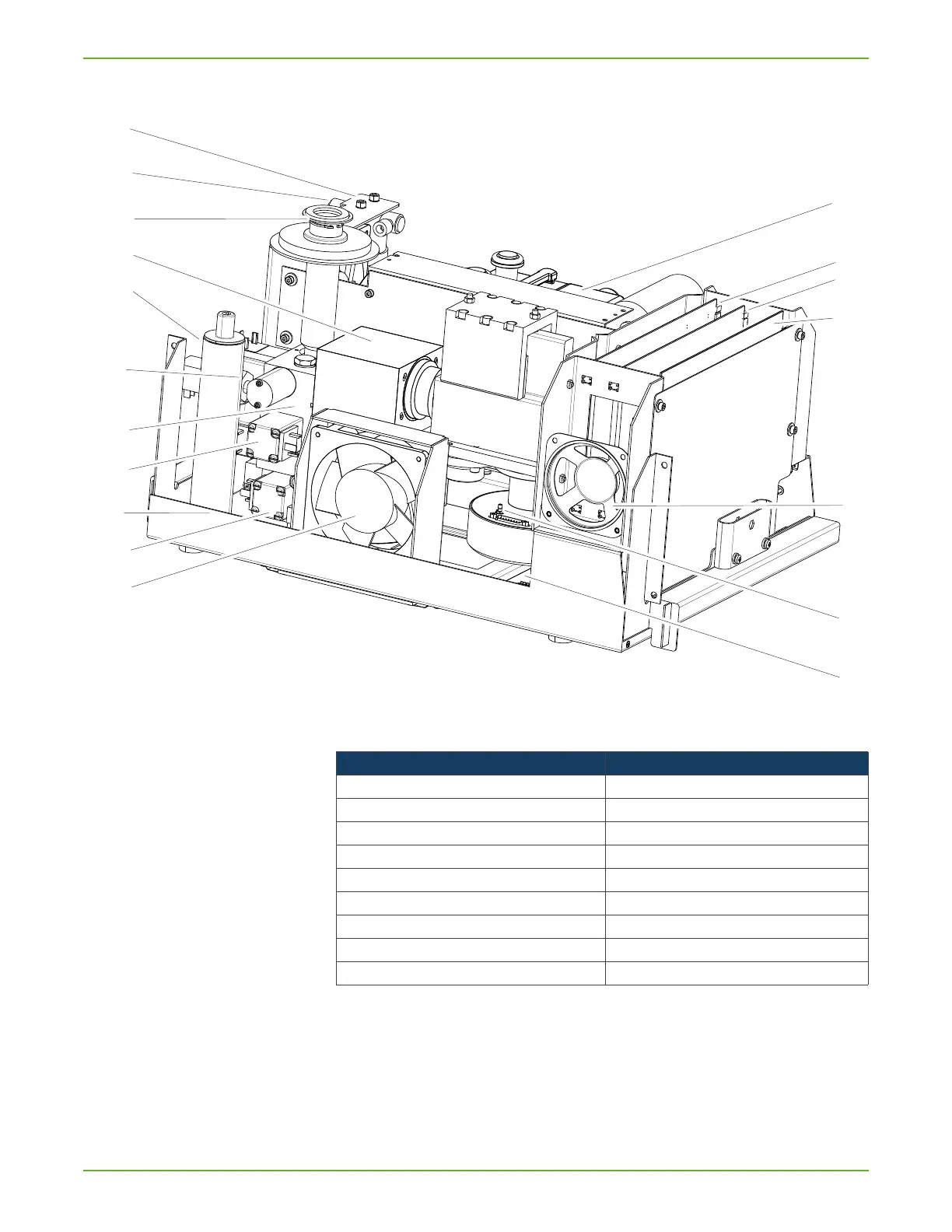

Fig. 15: TITANTEST™


















Table 33: The system at a glance
Pos. description Pos. description
1 Holder - fan 2 10 Valve V1
2 Oil mist filter (M-Series) 11 Fan 1
3 Test port 12 Backing pump UNO 006A
4 Turbo pump SplitFlow 80 13 I/O printed circuit board
5 Calibrated leak 14 MC 68 printed circuit board
6 Calibrated leak valve V5 15 MSV printed circuit board
7 Valve block 16 Speaker
8 Valve V2 17 Electrometer amplifier
9 Valve V3 18 Wiring board
