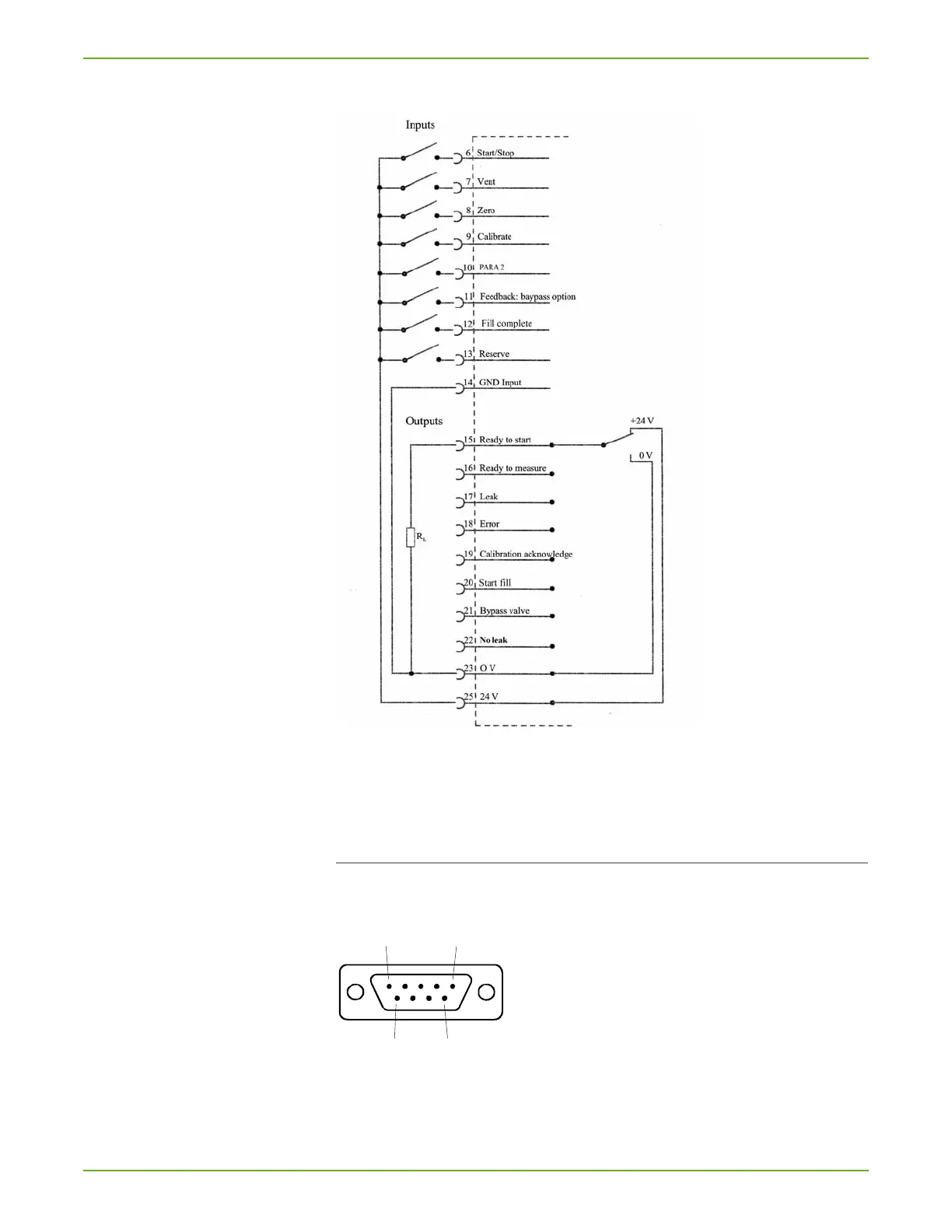

Example of digital inputs:
Fig. 43: Example of digital inputs
When controlling via the +24V of the leak detector, there must be a connec-
tion between PIN 14 and PIN 23.
11.2 RS232 interface**
The RS232 interface enables communications between the TitanTest™ and a
computer. A terminal can also be connected for test purposes.
Fig. 44: TitanTest RS232 Connector
** Feature not available in TITANTEST™ Maintenance model
