► Do not confuse the "RS485" connector with the "LP" connector.
Otherwise the device will not function.
11.4 Remote control
This remote control interface is designed as a serial port for controlling the
T
ITANTEST™ via the remote control when the wired version is used. The re-
mote control can be connected via a connection cable with an RJ45 plug.
The remote control is not included in the scope of delivery of the T
ITANTEST™.
11.5 Relay 1, Relay 2
Relay contact, 230 V~, 3 A.,
Plug T
ITANTEST™ Power Subcon, 3-pin

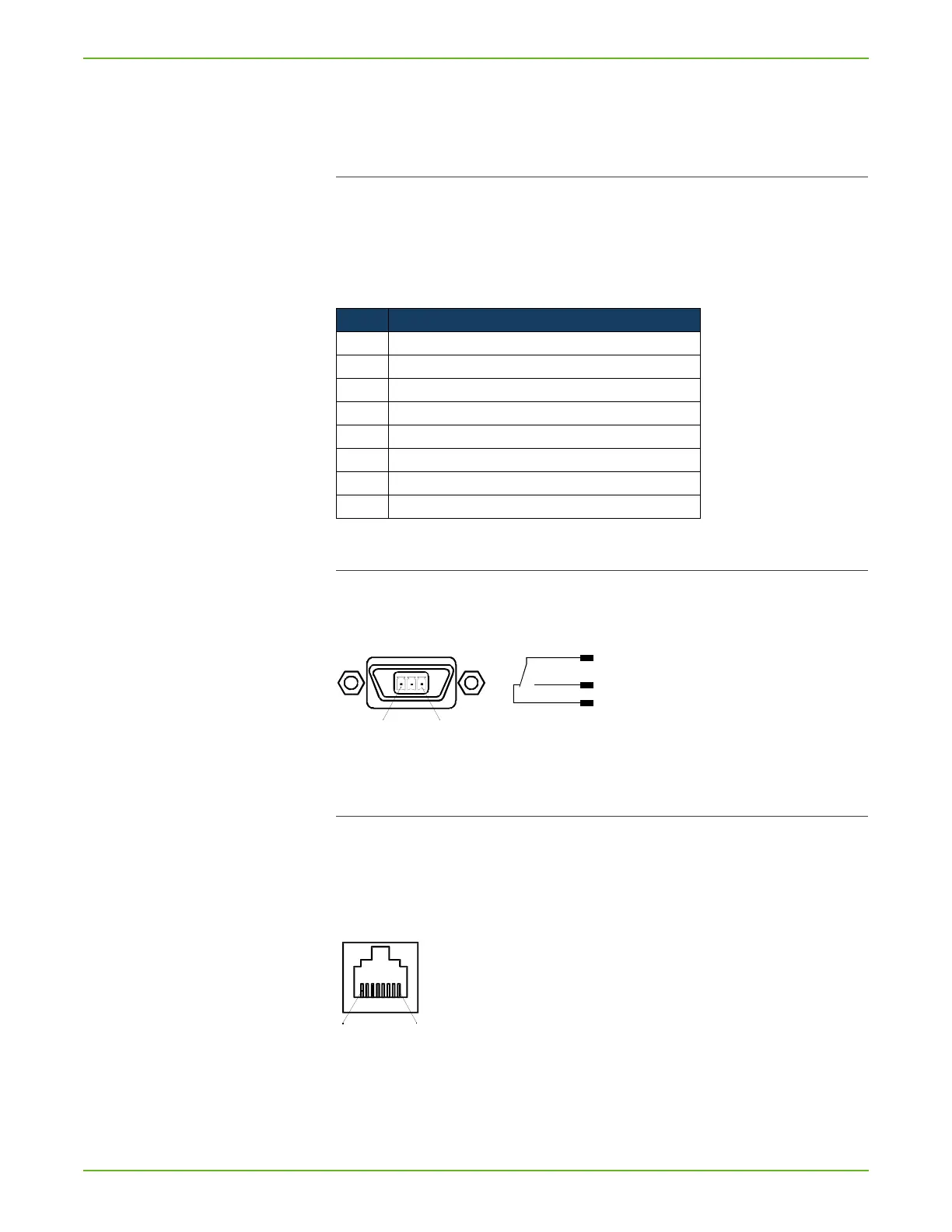

Fig. 48: Relay 1, Relay 2
11.6 LP
Connection for sniffer probe LP 503, LP 505, LP 510
RJ-45, 8-pin
 Do not confuse the connectors!
The connector is similar to the "RS485" connector.
Fig. 49: Connector: RJ-45 (8-pin)
Table 52: RC pin assignment
Pin Signal
1 not used
2 +24 V (0.8 A slow fuse)
30 V DGND (0 V)
4 RxD (intern. RS232)
5 TxD (intern. RS232)
6 not used
7 not used
8 not used
