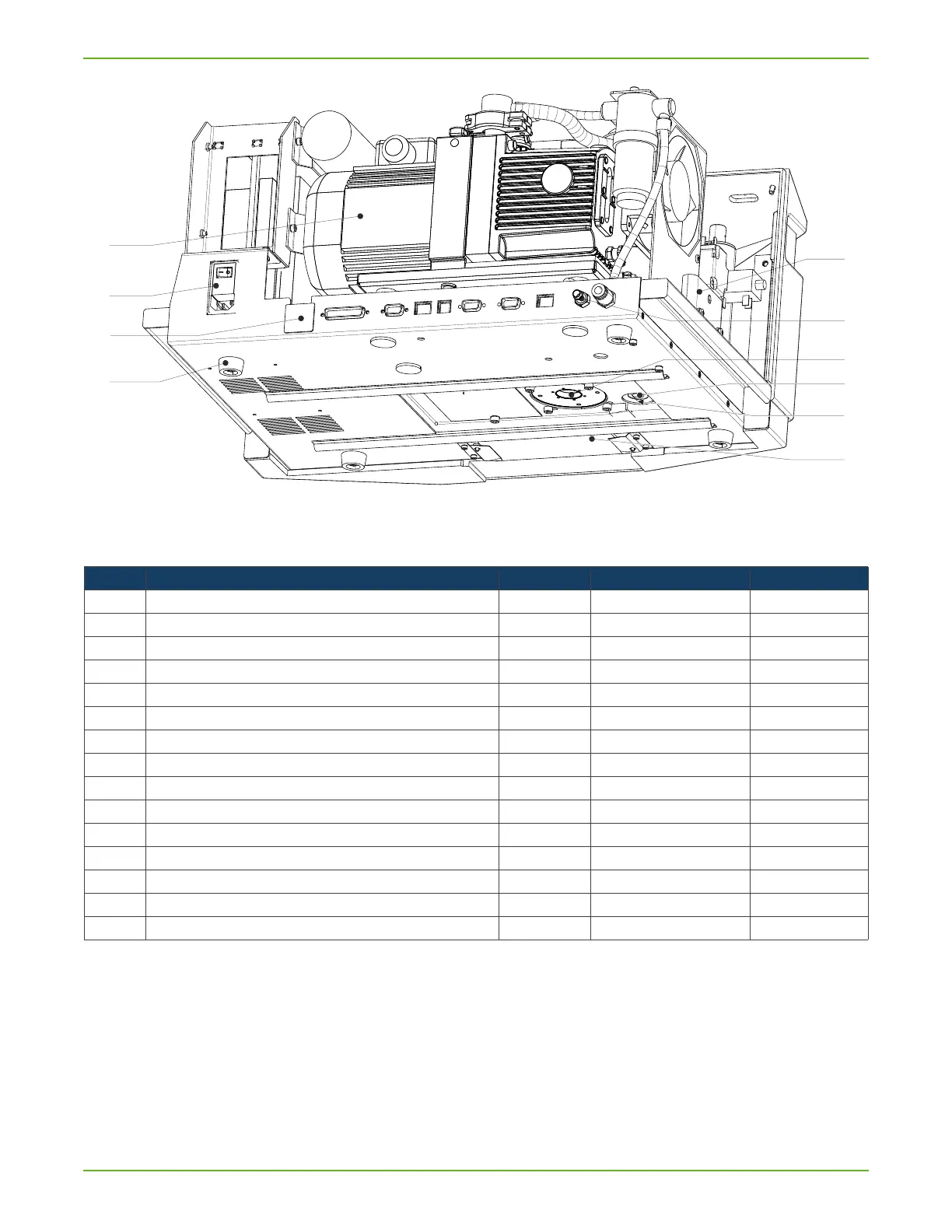

Fig. 33: TITANTEST™ M-Series, Chassis bottom view * Wet Series Only / ** Dry Series Only
Fig. 34: TITANTEST™ Chassis bottom view
Pos. Description Quantity Specifications Order No.
1* UNO 006 120 V / 60 Hz 1 T10027
1* UNO 006 230 V / 50 Hz 1 T10028
2 Mains Switch Assembly 1 T10029
-- Power Cord 120 V 1 3 x 1,5; l = 2,5 m T10080
-- Set of Power Cords (Europe) 2 3 x 1,5; l = 2,5 m T10081
3 Cover Cap 1 T10030
4 Rubber Feet 4 D=20; H=12; M6 T10031
5 Set of Latches for Cover Hood 2 T10032
6 Quick Coupling 1 T10033
7 Oil Wick SplitFlow 80 1 T10034
7 Oil Wick Cap SplitFlow 80 1 T10070
-- Oil Wick Cap Removal Tool 1 T10071
8* Valve Block Inlet Plug & Gasket 1 G 1/4 " T10077
9** Valve Block Inlet Flange & Gasket 1 DN 25 - G1/4" T10078
10 Cooling Fan Filter 1 Pore Size 500μ T10023
