154
10 Appendix
NOTICE
PC connection possible only via LAMTEC interface adapter!
NOTICE
For exchange of the fuses F3, F4, F5 these specifications are to be complied:
- 2A slow blow
- high breaking capacity according to IEC 60127-2, Sheet 5: 1500A @ 250VAC
- melting integral I²t < 40 A²s
- e.g. Littelfuse 0215002.(M)XP
Fuses which fulfills these requirements are ceramic tube fuses with the label T2AH 250V.

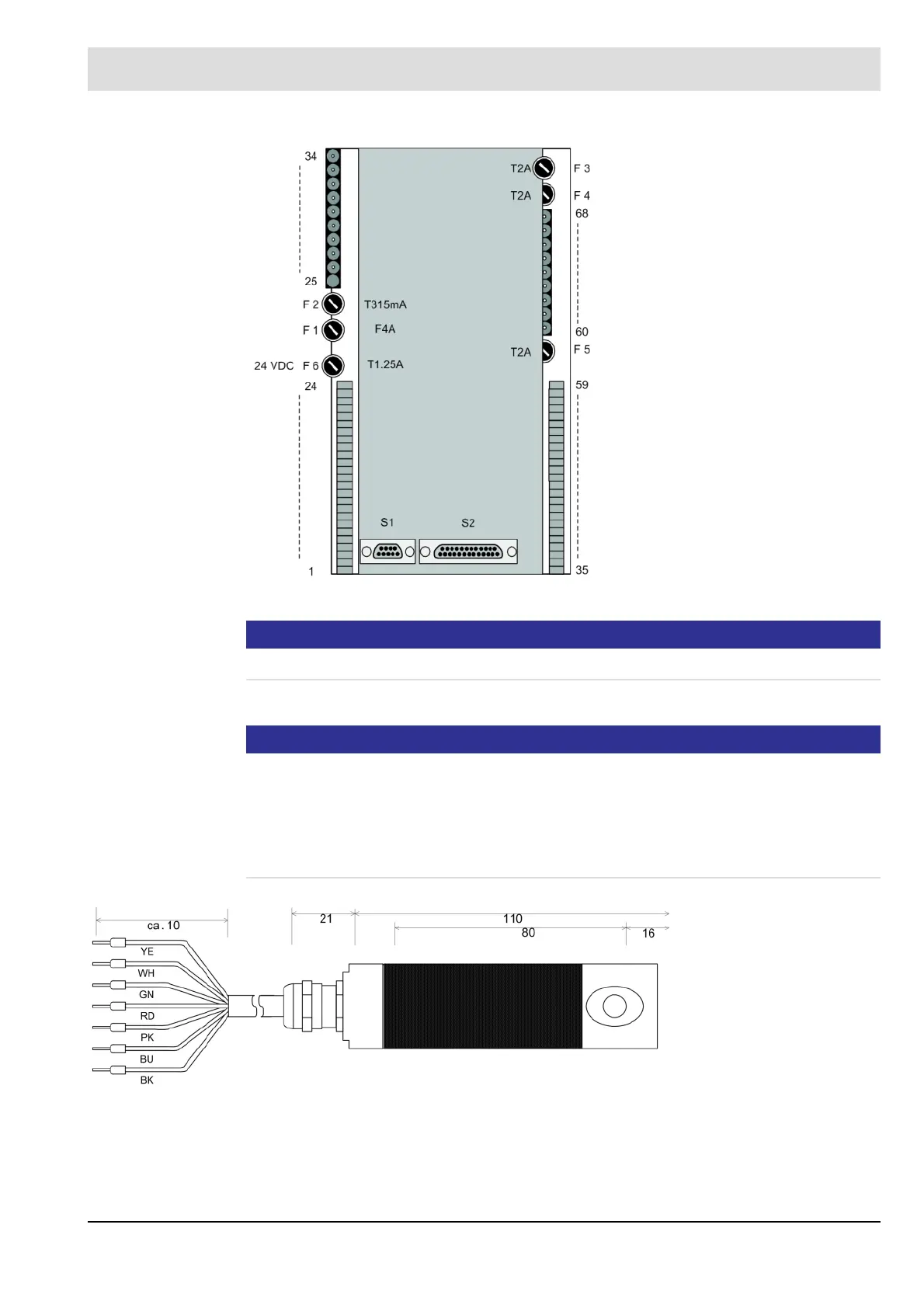

Fig. 10-43 Rear view ETAMATIC OEM
F1 Gerät
F2 Control elements
F3 Main gas 1
F4 Main gas 2
F5 Ignition transformer, fan, ignition
valves, oil pump, fault indication
F6 24VDC
S1 9-pole Sub-D connector for
LAMTEC SYSTEM BUS
S2 Communications interface
Fig. 10-44 Flame sensor FFS08 IR/UV
Marking Colour
YE yellow
WH white
GN green
RD red
PK pink
BU blue
BK black
