Lantronix PremierWave XN User Manual

3: Installation of the PremierWave XN Device
PremierWave® XN Intelligent Gateway User Guide 22
Hardware Components
Front/Top Panel
Figure 3-1 shows the top panel view of the PremierWave XN unit. Table 3-11, Table 3-12,
Table 3-2, Table 3-3, Table 3-4 and Table 3-13 list and explain the behavior of the LEDs on the top
panel.

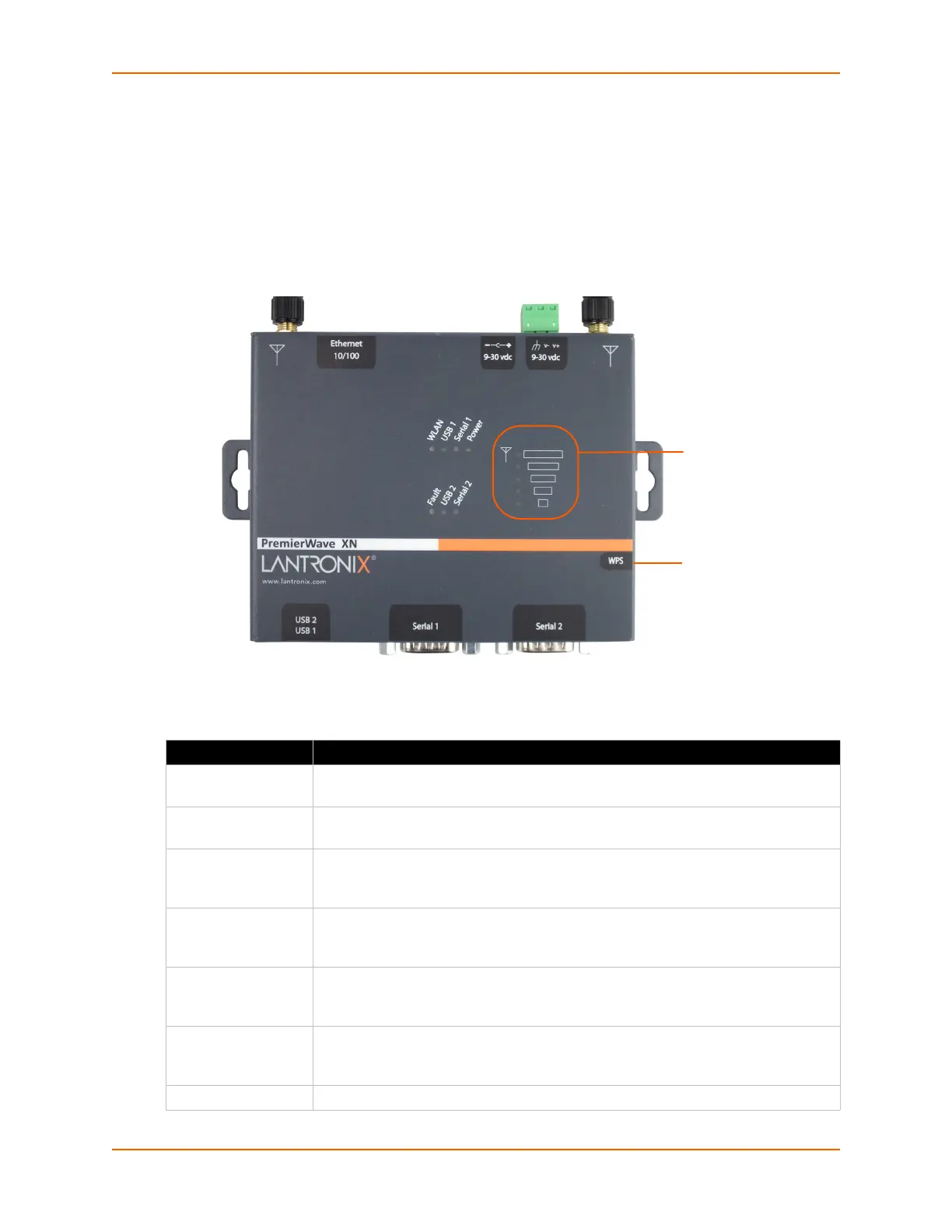

Figure 3-1 PremierWave XN Unit
Table 3-2 PremierWave XN LEDs and Descriptions
LED Description
Power
 GREEN - displays a solid light when power is properly supplied
 OFF - no power supplied
WLAN
 AMBER - flashes when the RX/TX packets are detected on the WLAN interface.
 OFF - indicates WLAN interface is inactive or disabled
Serial 1
 GREEN - flashes when Serial port 2 is transmitting data
 AMBER - flashes when Serial port 2 is receiving data
 OFF - when no data is being transmitted or received through Serial port 2
Serial 2
 GREEN - flashes when Serial port 2 is transmitting data
 AMBER - flashes when Serial port 2 is receiving data
 OFF - when no data is being transmitted or received through Serial port 2
USB 1
 GREEN - displays a solid light when a USB device is connected to USB 1 Host
port and is functioning properly
 OFF- when no USB device is connected to USB 1 Host port
USB 2
 GREEN - displays a solid light when a USB device is connected to USB 2 Host
port and is functioning properly.
 OFF- when no USB device is connected to USB 2 Host port.
Fault/Diagnostic See Table 3-3 for diagnostic indications.
Signal
Strength
LEDs
WPS
Button
(pin hole)
