5: Configuration Using Web Manager

PremierWave® XN Intelligent Gateway User Guide 34

Device Status Page

The page is the first to appear after you log into Web Manager. The Device Status page also

appears when you click Status in the menu bar in Web Manager.

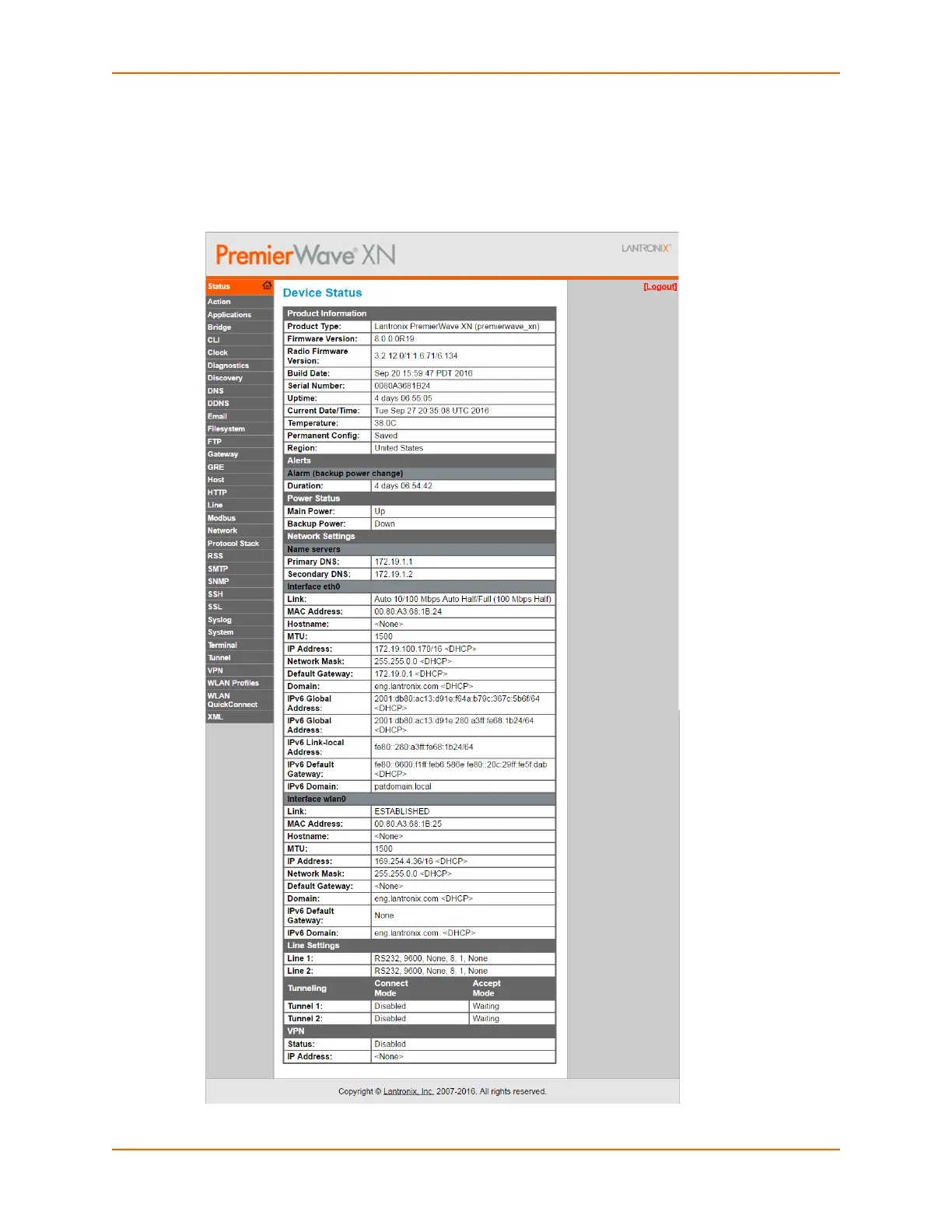

Figure 5-1 Device Status Page

Note: The Logout

button is available on

any web page. Logging

out of the web page

forces re-authentication

the next time the web

page is accessed.
