3: Installation of the PremierWave XN Device
PremierWave® XN Intelligent Gateway User Guide 24

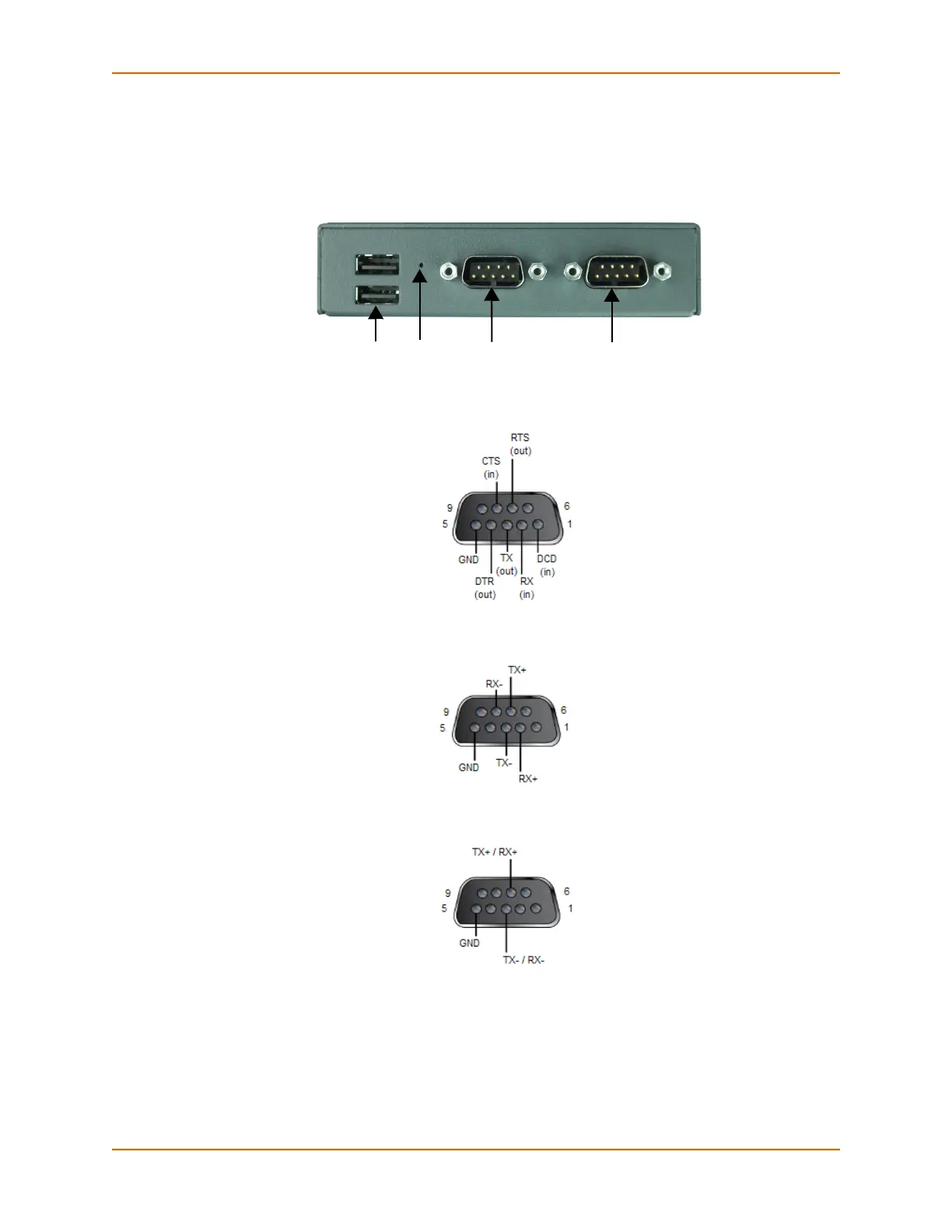

The PremierWave device has two male DB9 serial ports that support RS-232/422/485. Figure 3-5
shows the front view of the device. The default serial port settings are 9600 baud, 8 bits, no parity,
1 stop bit, no flow control.
Figure 3-5 PremierWave XN Male DB9 DTE Serial Ports
Figure 3-6 PremierWave XN Pinout Configuration for RS-232
Figure 3-7 PremierWave XN Pinout Configuration for Full Duplex RS-422/485 (4-wire)
Figure 3-8 PremierWave XN Pinout Configuration for Half Duplex RS-422/485 (2-wire)
2 USB Reset Serial 1 Serial 2
Ports Button
