8. Rotate the brightness knob and
adjust the camera to full
brightness (see Figure 9).
If it is too bright, rotate the
brightness knob slightly, to
suit.
9. Rotate the camera focus knob
(see Figure 9) until the end of
the gas jet tip becomes in focus
with a clear image. See Figure
10.
You should be able to see
tooling marks on the end of
the tip.

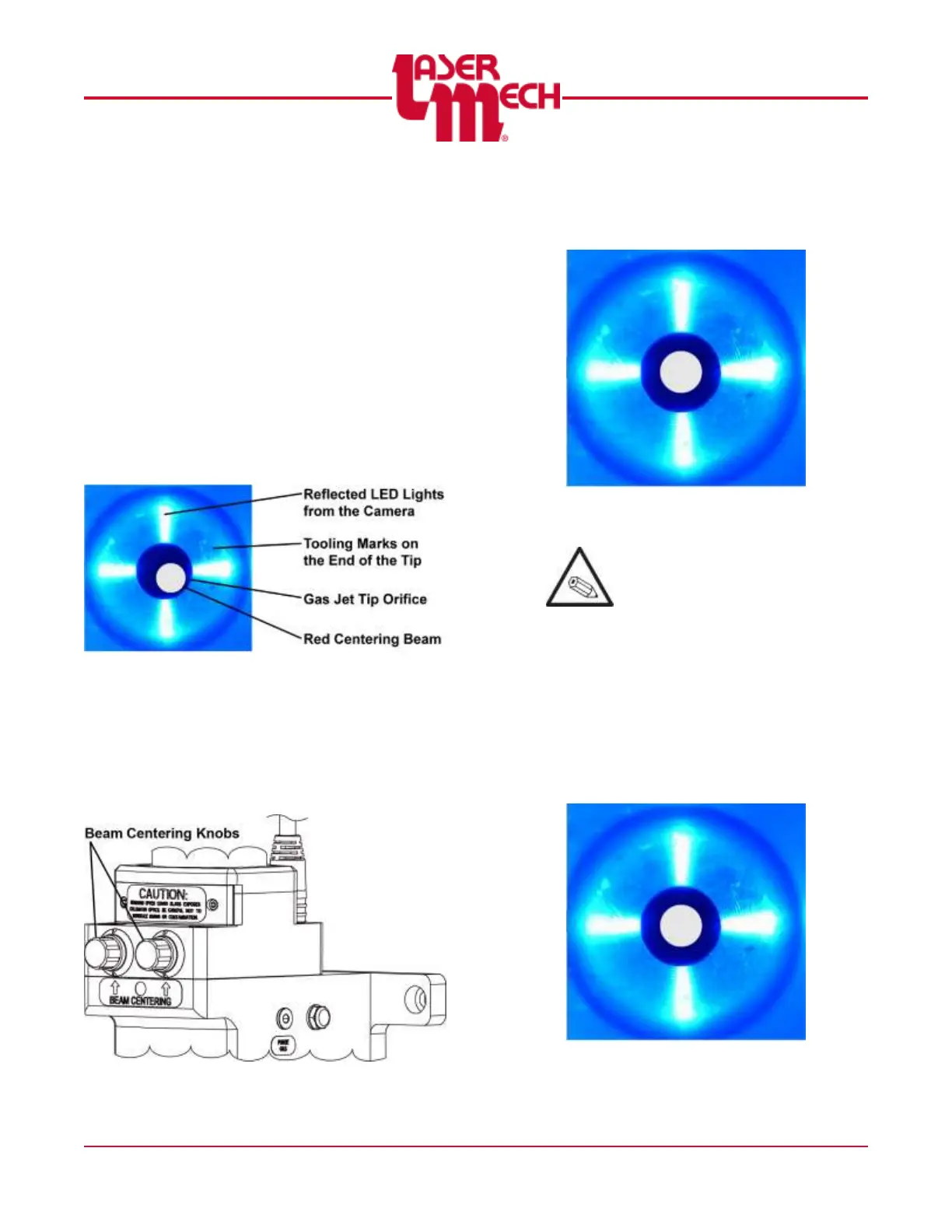

Figure 10
10. Move the focus lens to the top
of travel.
11. Adjust the beam centering
knobs on the head (see Figure
11) so the beam is centered in
the nozzle orifice.
Figure 11
The image on the screen
should be similar to Figure
12.
Figure 12
Beam is centered
It is sometimes helpful to rotate
the camera while it is seated
against the tip assembly nut to
confirm the beam centering.
12. Move the focus lens from top of
travel to bottom of travel and
view the beam position in the
nozzle orifice.
If the beam is centered, it is
aligned parallel and
centered through the head.
No further adjustments are
necessary. See Figure 13.
Figure 13
Beam is centered with the
Lens at the Bottom of Travel
