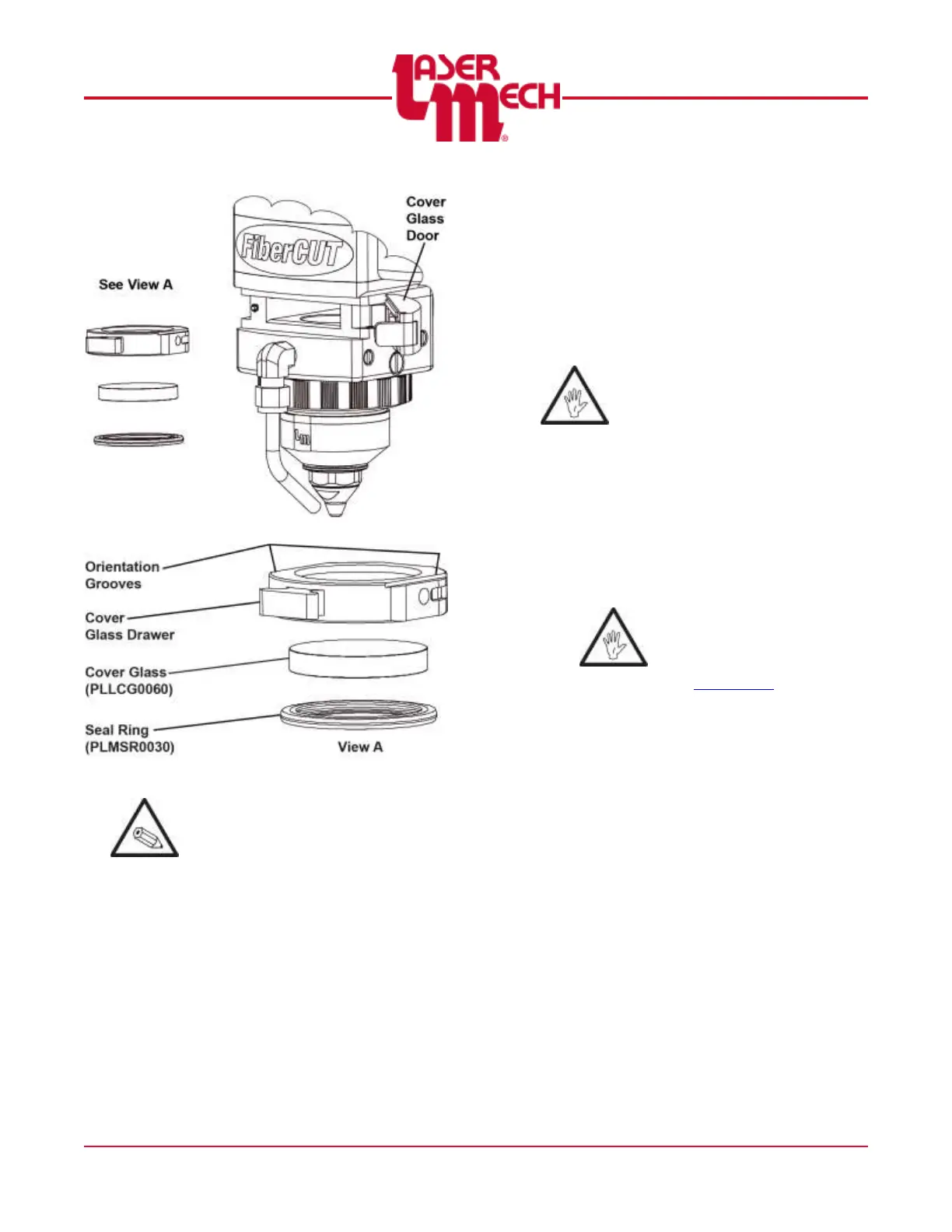

Figure 53
The orientation slots MUST match
View A in Figure 53.
7. Remove the cover glass from
the drawer by applying
pressure with your fingers to
the surface of the cover glass,
opposite the seal.
The seal ring and cover
glass will pop out.
Inspect the seal ring.
There MUST be NO dirt, process
debris or any type of
contamination on the seal.
o Replace the seal ring if
it is contaminated.
o Save the seal ring if it is
in good condition.
8. Install a new cover glass by
placing it into the drawer.
Laser Mechanisms
recommends changing the
seal ring (PLMSR0030) on
the bottom of the lower cover
glass drawer once per month.
See Appendix H.
9. Press the seal ring into the
drawer to retain the cover
glass.
10. Open the cover glass door.
11. Reinsert the cover glass drawer
into the head.
12. Close the cover glass door.
