PLMNL0232 REV. H Effective Date: 01/14/19 48 FiberCUT
®
2D Operation Manual

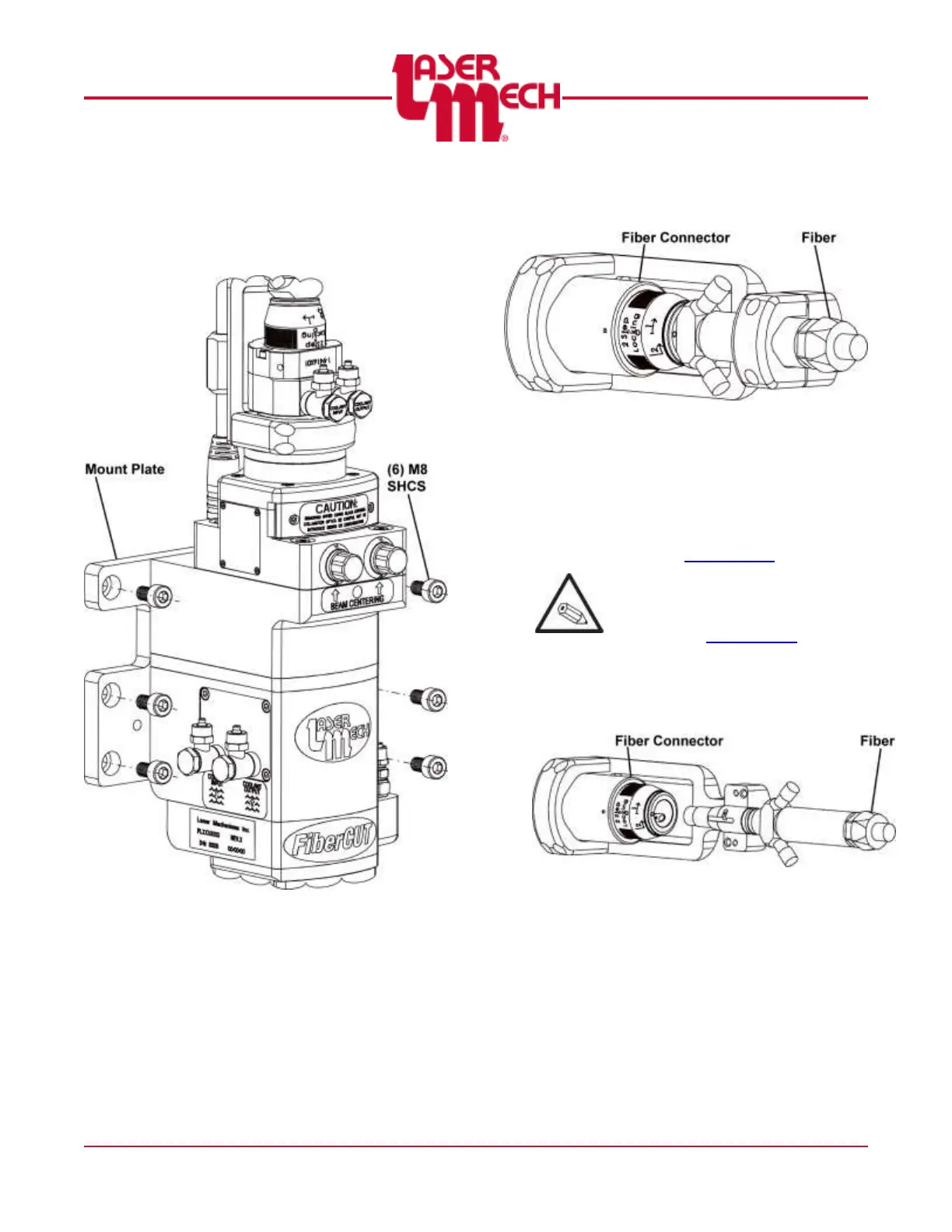

6. Unbolt the head from the machine
using a 6mm hex wrench as shown in
Figure 65.
Figure 65
7. Position the head so it is
HORIZONTAL. See Figure 66 .
Figure 66
8. Verify the fiber and connector are
thoroughly clean.
9. Verify that the upper cover glass is in
place.
10. Remove the upper fiber clamp
according to Section 2.2.1.
EVERY TIME the fiber is removed
and/or installed the upper cover
glass MUST BE inspected
according to Section 5.3.2.
11. Remove the fiber optic cable from the
cutting head according to the fiber
manufacturer’s instructions. See
Figure 67.
Figure 67
To Next Page
