3.3.5 Series standard and optional interfaces
The following sections contain a general overview of all standard interfaces
on the device as well as additional interface modules.
Equipment connected to the low-voltage inputs and outputs must
be safely insulated against dangerous contact voltages as per DIN
EN 61140, for example, using double or reinforced insulation as per
DIN EN 60730-1 or DIN 60950-1.
Refer to the separate operating manual accompanying the inter-
face modules for further information on installing and operating
these interface modules. Each respective operating manual must be
observed in order to use the module as intended.
The Base or Command Touch remote controls are connected via the
LiBus interface (marked with designation LiBus).
The USB device interface (type B) allows connection to a PC. Soft-
ware updates are transferred to the device via this USB interface (for
updaters only, not a process interface).
The Ethernet interface oers the customer the opportunity to control
and monitor the temperature processes carried out by LAUDA con-
stant temperature equipment through a LAUDA interface command set
(process interface).
The external Pt100 temperature probe is connected to the Pt100 inter-
face (marked with the label Pt100).
This interface is a LEMO socket in size 1S.
There is a USB device interface (type A) on the Command Touch
remote control. This interface can be used for data imports, data exports
and updating the Command Touch software, for example.
Standard interfaces

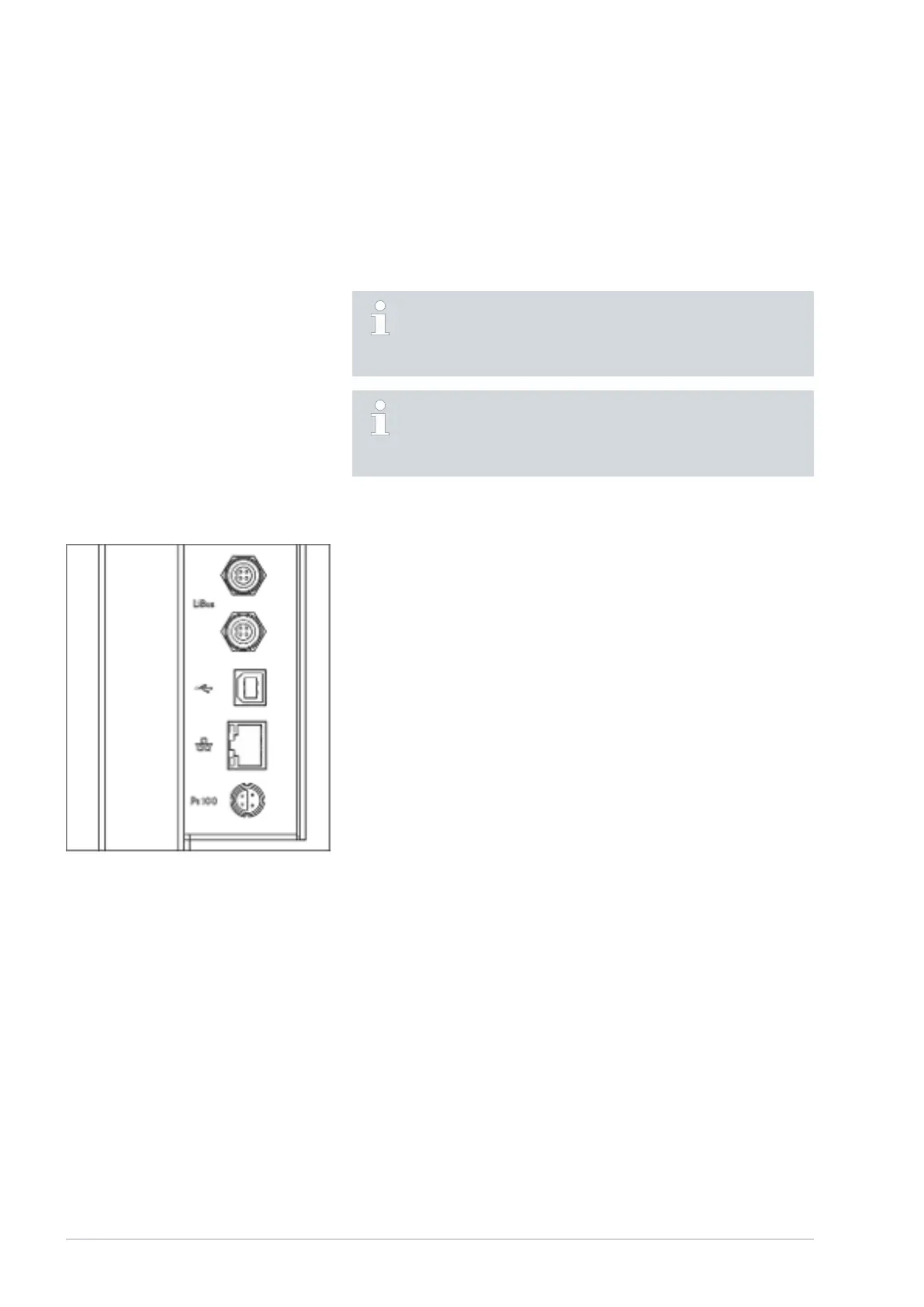

Fig. 9: Interface panel
V6PRO bath thermostats and circulation thermostats26 / 156
