 The value to be entered is displayed in enlarged font.
 Touch the enlarged value to select the group of digits. The cursor indi-
cates the selected digits.
 Enter the new value using the numeric keypad.
 Pressing the [OK] button adopts the selected value and the program
returns to the previous screen.
 If you enter an invalid value and press the [OK] button, the value you
entered is not adopted.
 Press the [<] button to return to the previous screen without saving any
changes.
 Press the [C] button to delete the new value and display the original
value again.
 The US date format (mm.dd.yy) and time format (am or pm) can also be
selected.
5.6.3 Graph window
Command Touch units allow you to display temperature profiles in graph
format.
T
set
(white line) - displays the set temperature
T
int
(green line) - displays the current internal temperature profile
(bath temperature)
T
ext
(violet line, not
shown)
- displays the current external temperature profile
(external consuming unit)
1. Tap the [Maximize] icon at the bottom center of the Home window.

The graph window containing the temperature profile appears.
2. Tap the [Minimize] icon in the upper right corner of the graph window.

The Home window appears.
3. Touch the temperature scale or the time scale to open the graph
settings submenu.
This acts as a shortcut to the Settings  Graph settings menu.
4. Touch T
int
or T
ext
to show or hide the respective temperature curve.
This acts as a shortcut to the Settings  Graph settings  Displayed
measured values menu item.
Input window for entering the date and time
manually

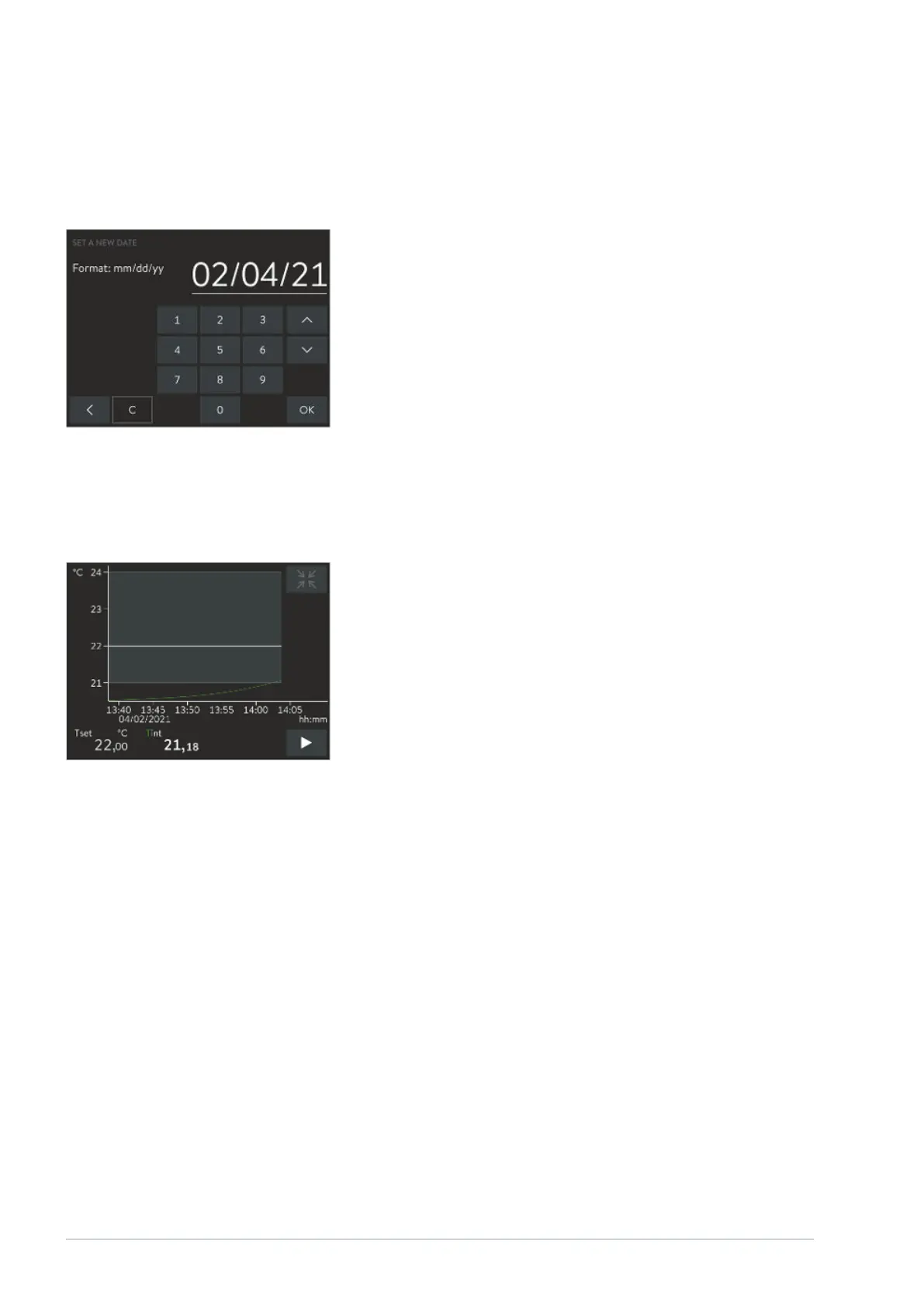

Fig. 31: Entering the date
Fig. 32: Graph window
Displaying the graph window
V6PRO bath thermostats and circulation thermostats68 / 156
