LAUNCH X-431 PAD III User Manual
97
connected to the BNC to 4mm Test Lead.
With these 6-way leads, you will be able to test
most of the sensors and actuators on all makes and
models of vehicle, including MAP, temperature,
throttle position and airflow sensors, fuel pumps,
primary ignition circuits and fuel injectors.
3

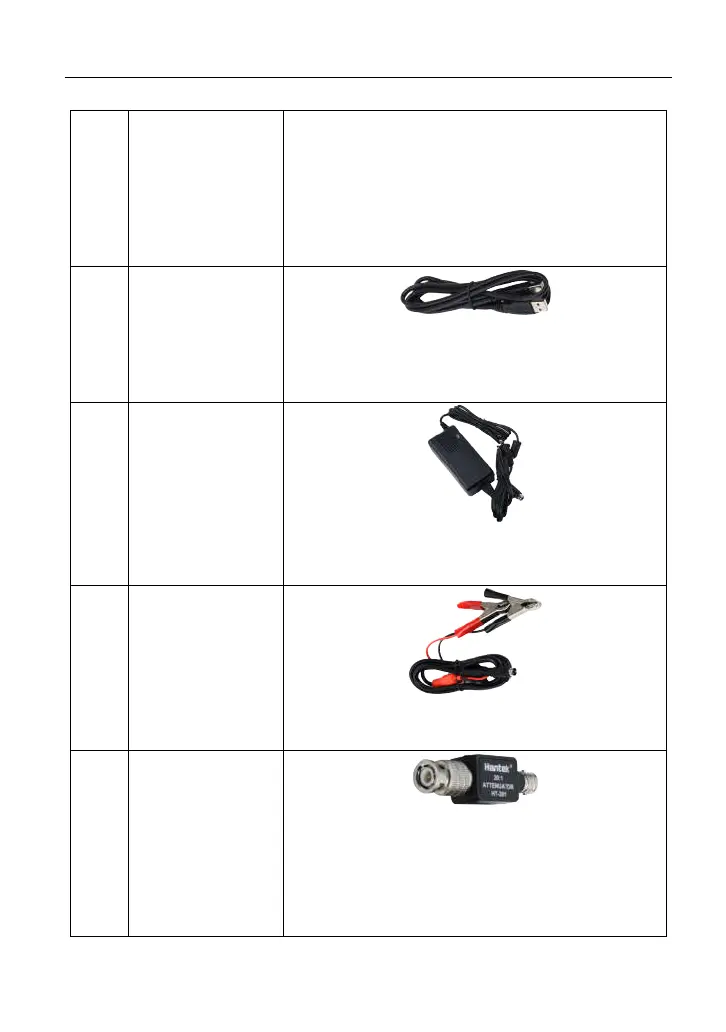

USB cable
Connects the Scopebox and diagnostic tool so that
the sampled signal can be displayed on the
diagnostic tool.
4
Power adaptor
To supply power to the Scopebox through
connection to AC outlet.
5
Battery clamps
cable
To supply power to the Scopebox through
connection to vehicle's battery.
6
20:1 Attenuator
It allows the Scopebox to measure fuel injector and
primary ignition waveforms.
*Note: Please note this attenuator should be not
used for any high voltage measurements other than
fuel injectors and primary ignition.
