LAUNCH X-431 PAD III User Manual
4
2 Knowledge of X-431 PAD III
There are two main components to the X-431 PAD III system:
 X-431 PAD III Tablet – the central processor and monitor for the system (See
Chapter “2.1”).

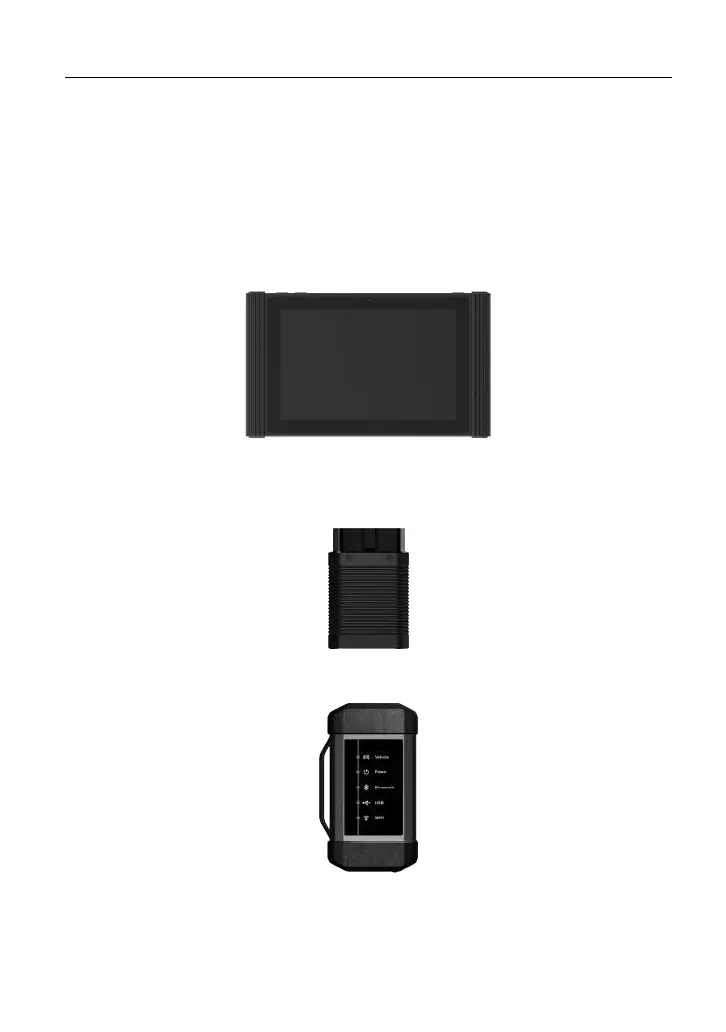

Fig. 2-1 X-431 PAD III tablet
 VCI Device – the device for accessing vehicle data (See Chapter “2.3”).
Fig. 2-2 (Only for Passenger Vehicle Version)
Fig. 2-2 (Only for Commercial Vehicle / Gasoline & Diesel Version)
