LAUNCH X-431 PAD III User Manual

Fig. 4-13

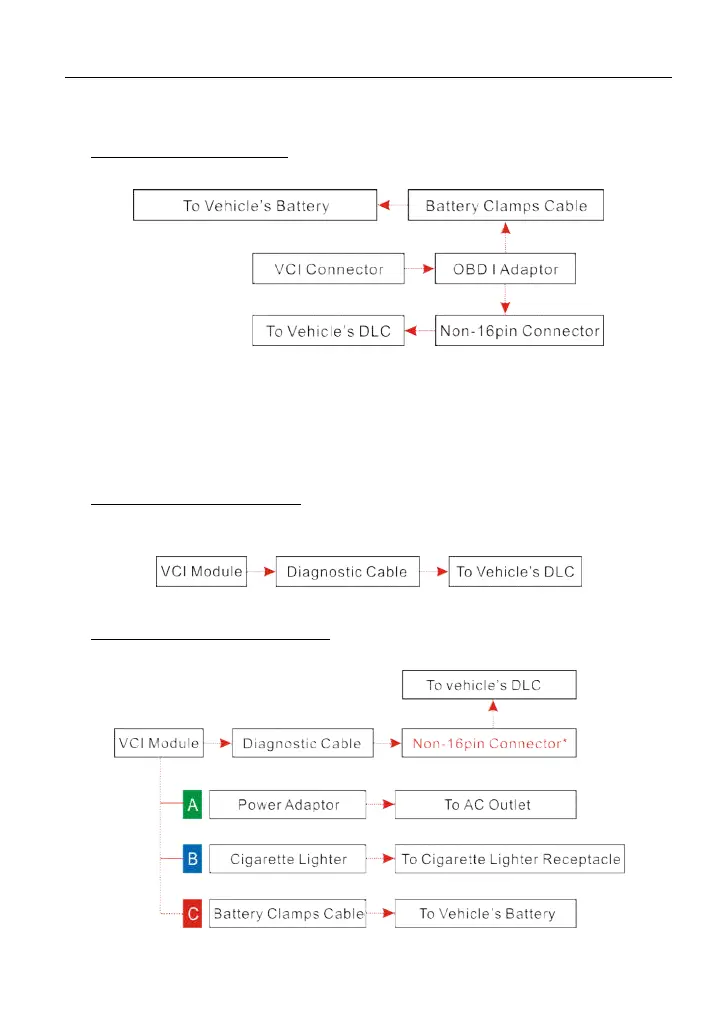

B. Battery Clamps Cable: Connect one end of the battery clamps cable to

vehicle’s battery, and the other end to the power jack of OBD I adaptor.

Fig. 4-14

4.3.3 Vehicle connection (For Commercial Vehicle/ Gasoline & Diesel

Version)

The method used to connect the VCI module to a vehicle’s DLC depends on the

vehicle’s configuration as follows:

A. OBD II Vehicle Connection: Plug one end of the diagnostic cable into the

vehicle’s DLC, and the other end into the diagnostic socket of the VCI module,

and then tighten the captive screws.

Fig. 4-12

B. Non-OBD II Vehicle Connection: For vehicles with non-OBD II diagnostic

socket, a non-16pin connector (adaptor cable) is required.

Fig. 4-13
