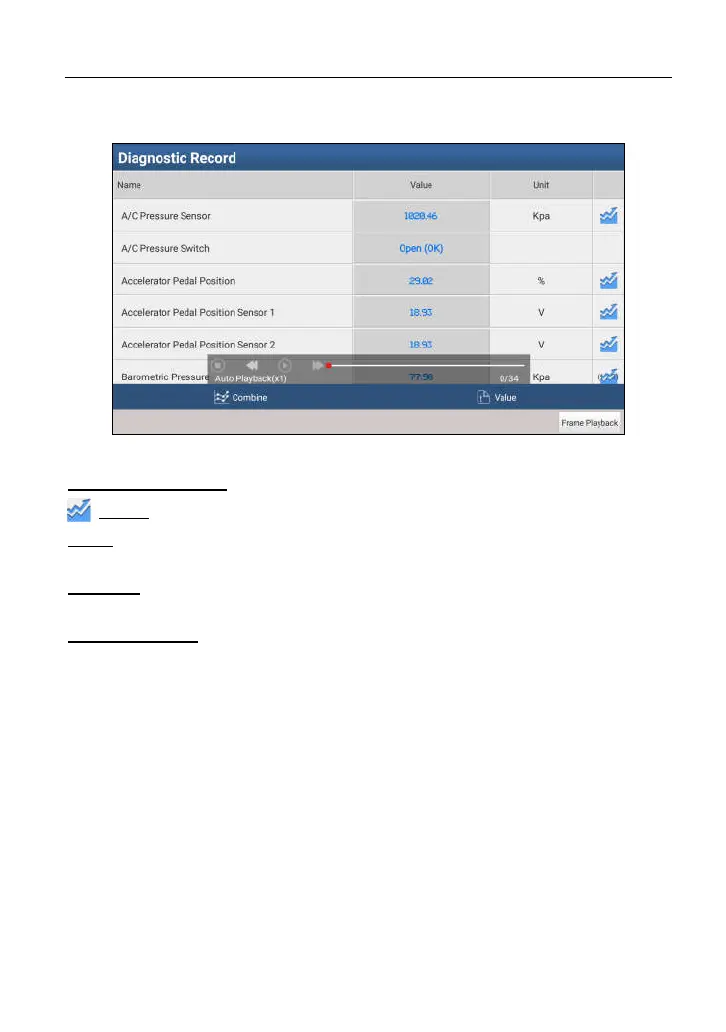

Fig. 14-4
On-screen Buttons:
Graph
– displays the parameters in waveform graphs.
Value
– this is the default mode which displays the parameters in texts and
shows in list format.
Combine
– this option is mostly used in graph merge status for data comparison.
In this case, different items are marked in different colors.
Frame Playback
– plays back the recorded data stream items frame by frame.
Once it is in frame playback mode, this button changes into “Auto Playback”.
Remote Diagnostic Report
lists all diagnostic reports generated in process of
remote diagnosis.
14.2 VCI
This option allows you to manage all your activated VCI connectors.
If several VCI connectors are activated on this tool, a list of connectors will be
displayed on the screen. Once you choose the connector that belongs to other
account, you have to log out, and then input the right account to continue.
14.3 VCI Management (For Passenger Vehicle Version)
This option is used for X-431 PAD III to deactivate pairing up with the VCI
connector via Bluetooth.
