2.2 VCI Connector (Only for Passenger Vehicle Version)

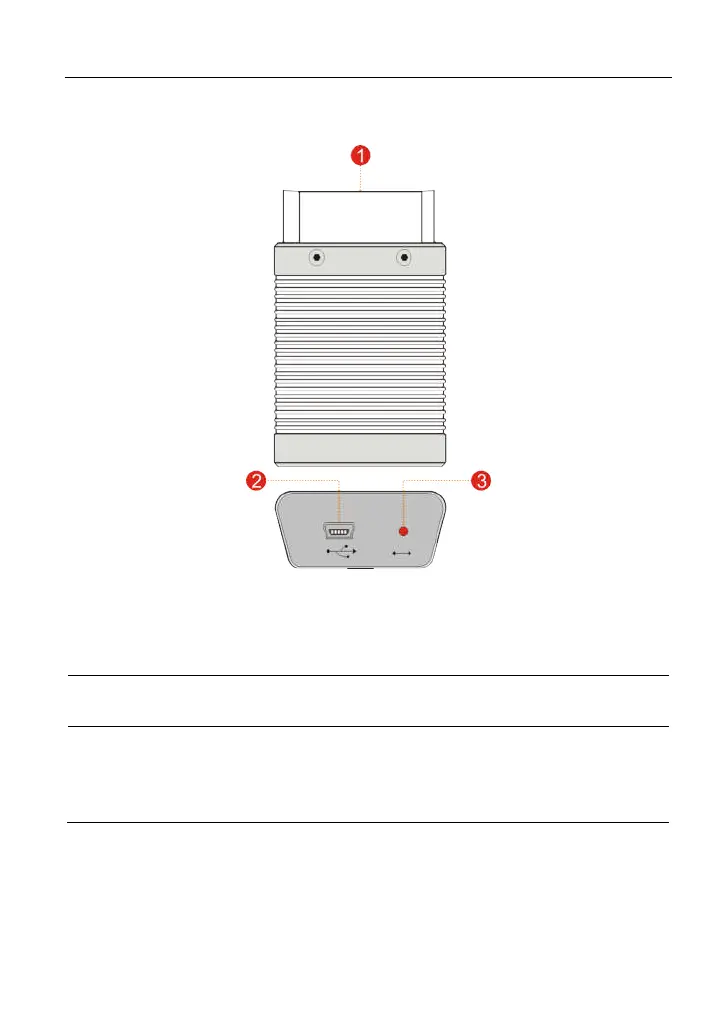

Fig. 1-2 VCI connector
1
OBD-16 diagnostic
connector
To connect on vehicle’s OBD2 DLC.
2 Mini USB port
For connecting the USB cable to the tablet to
perform vehicle diagnosis.
3 Mode indicator
 It illuminates red when the VCI connector is
connected to the vehicle’s DLC.
 Blue indicates the VCI connector is working
in Bluetooth mode.
