Launch X-431 PAD III User Manual

LAUNCH X-431 PAD III User Manual
74
3 Power LED
It keeps steady on (red) after the sensorbox
is powered on.
4 Type-B USB port
Connect the Sensorbox to the diagnostic tool
with USB cable.
5 Power connector
Connect to power supply through the power
adaptor.
6 COM Common terminal of multimeter
7 VΩHz Testing terminal of multimeter
9.2.2 Sensorbox accessories
The sensorbox accessories include sensor test cable, probe etc. For detailed
items, please see the packing list.

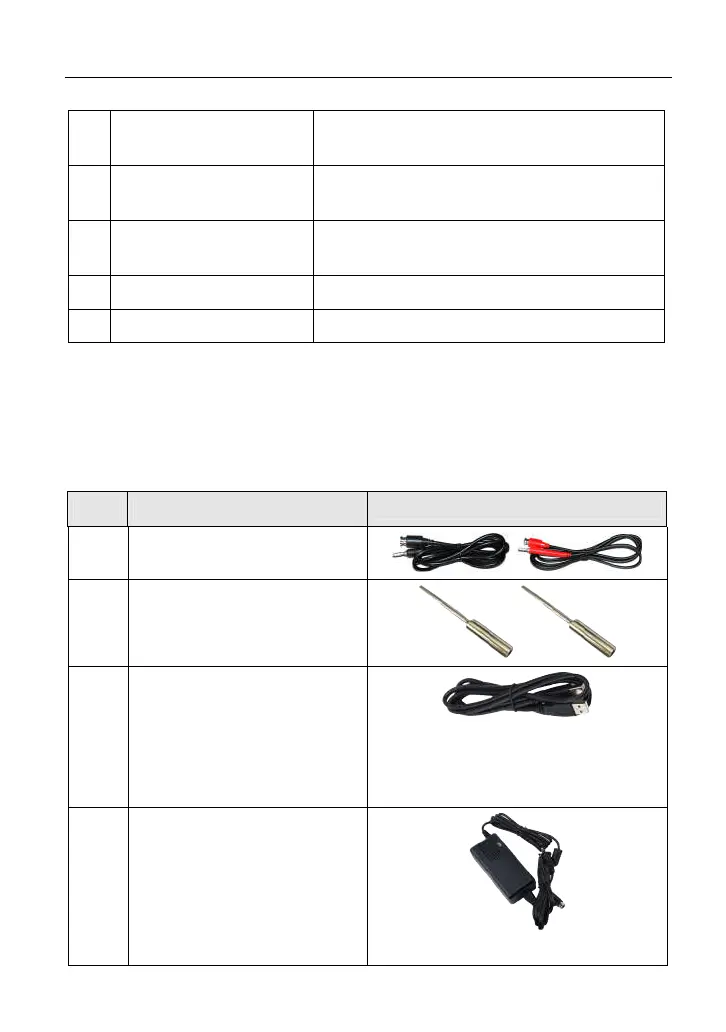

Below formulates the Sensorbox accessories:
No. Name
1 Sensor test cable
2 Sensor probes
3
USB cable
Connects the Sensorbox and diagnostic
tool so that the sampled signal can be
displayed on the diagnostic tool.
4
Power adaptor
To supply power to the Sensorbox

Launch X-431 PAD III Specifications

General

Resolution	1280 x 800
RAM	2 GB
Connectivity	Wi-Fi, Bluetooth
Processor	Quad-core
Operating System	Android
Display	10.1-inch IPS
Battery	7000 mAh
Camera	Rear: 5MP, Front: 2MP
Ports	USB, HDMI
Supported Protocols	CAN
