LAUNCH X-431 PAD III User Manual

106

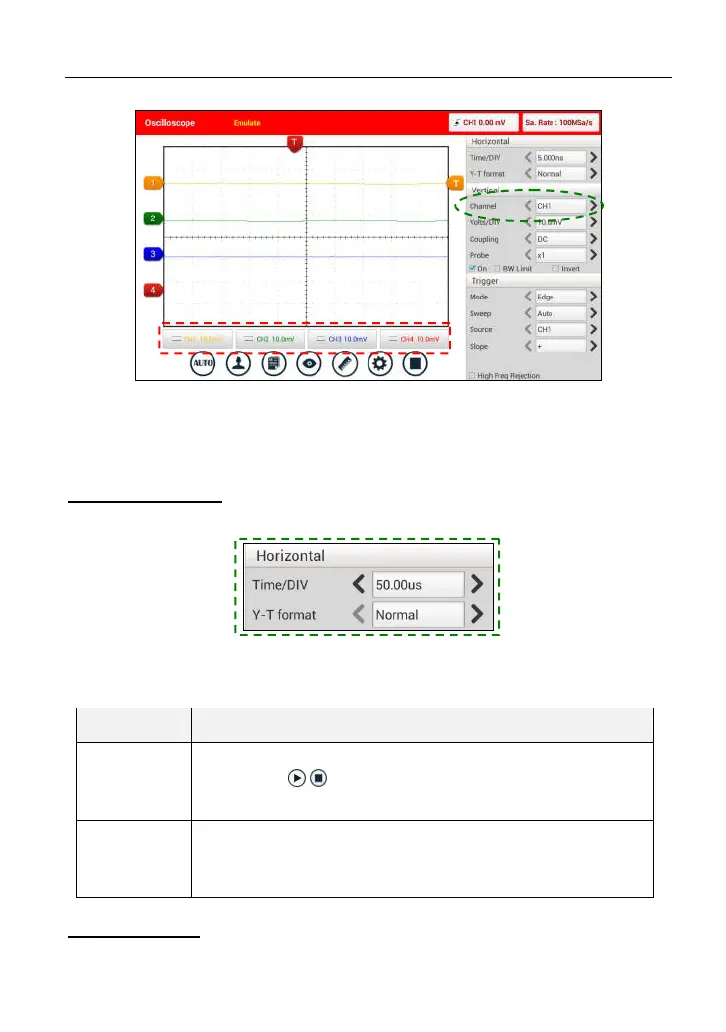

Fig. 12-7

<2> Channel attributes & trigger setting

Channel attributes can be set via horizontal settings and vertical settings.

Horizontal Settings

User can make some settings directly by tapping < or > next to options.

Fig. 12-8

Options descriptions:

Menu Comments/Settings

Time/DIV

Horizontal scale. If the waveform acquisition is stopped

(using the / button), the Time/DIV selector expands

or compresses the waveform.

Y-T format

The conventional oscilloscope display format. It shows the

voltage of a waveform record (on the vertical axis) as it

varies over time (on the horizontal axis).

Vertical Settings

The trigger determines when the Scopebox starts to acquire data and display a
