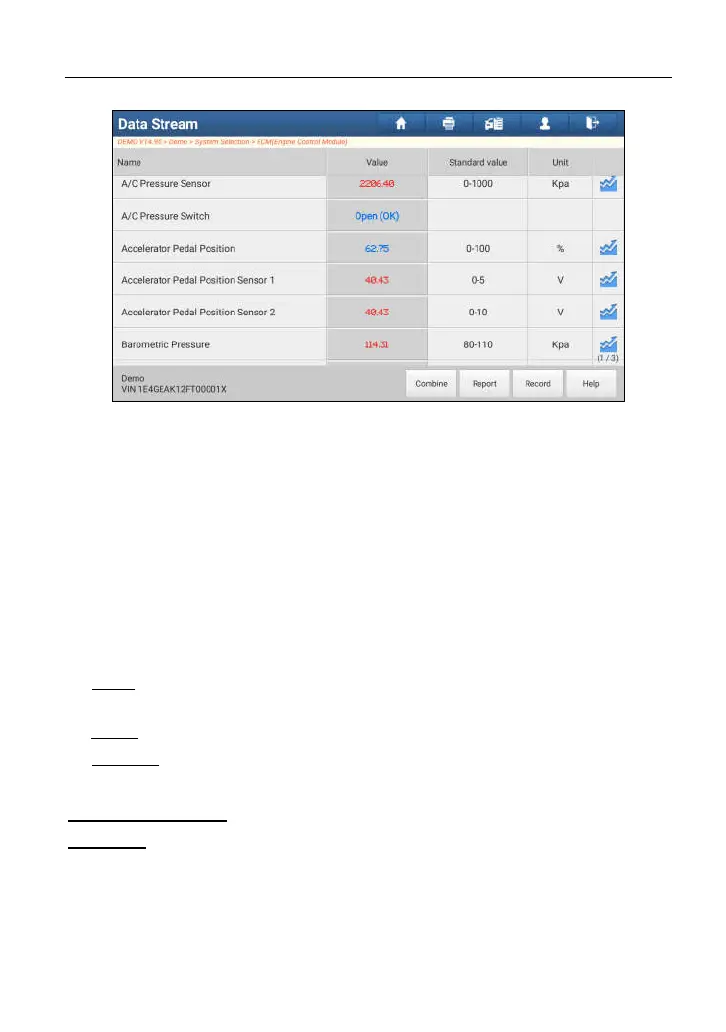

Fig. 5-29
Notes:
1.
If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in blue (normal mode).
2.
The indicator 1/X shown on the bottom of the screen stands for the current
page/total page number. Swipe the screen from the right/left to advance/return to
the next/previous page.
There are 3 types of display modes available for data viewing, allowing you to
view various types of parameters in the most suitable way.
Value – this is the default mode which displays the parameters in texts and
shows in list format.
Graph – displays the parameters in waveform graphs.
Combine – this option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors.
On-screen Buttons:
Combine:
This option is mostly used in graph merge status for data comparison.
In this case, different items are marked in different colors. Tap it to select the
desired items, and then tap “Confirm” to view the merged items in graph. See
Fig. 5-30 & Fig. 5-31.
