LAUNCH X-431 PAD III User Manual

Help:

Tap to view the help information.

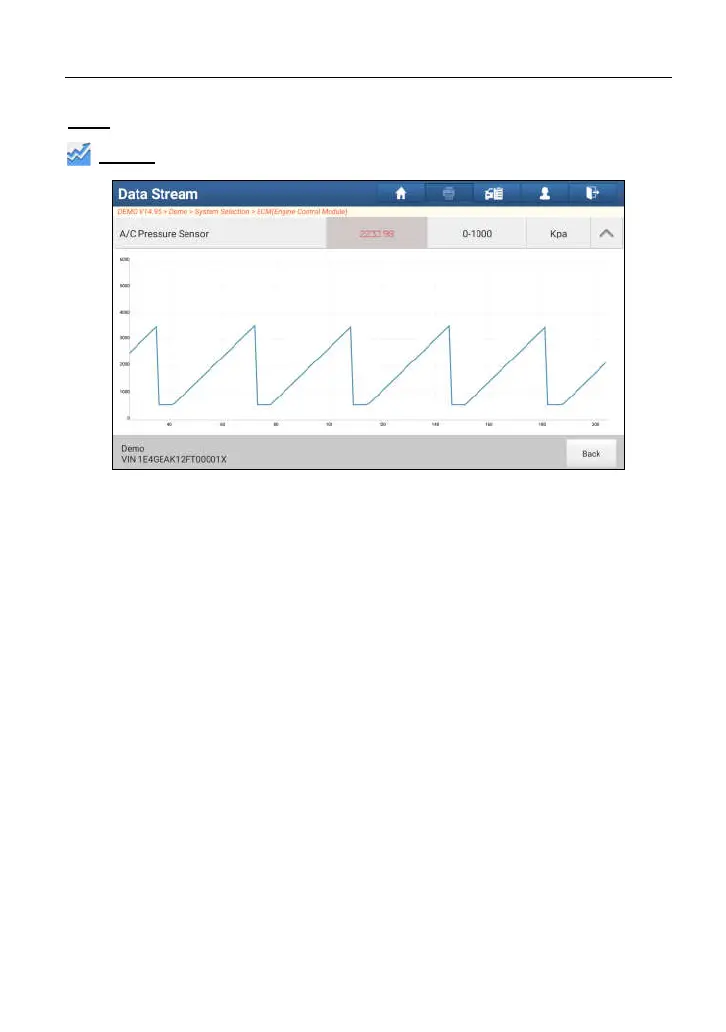

Graph:

Tap it to view the waveform.

Fig. 5-32

E. Actuation Test

This option is used to access vehicle-specific subsystem and component tests.

Available test vary by vehicle manufacturer, year, and model.

During the actuation test, the X-431 PAD III handset outputs commands to the

ECU in order to drive the actuators, and then determines the integrity of the

system or parts by reading the ECU data, or by monitoring the operation of the

actuators, such as switching a injector between two operating states.

In Fig. 5-24, tap “Actuation Test”, the system will display as follows:
