Leica DVM6 - Overview of the Instrument; Instrument Components

Leica DVM6 User Manual Introduction 16

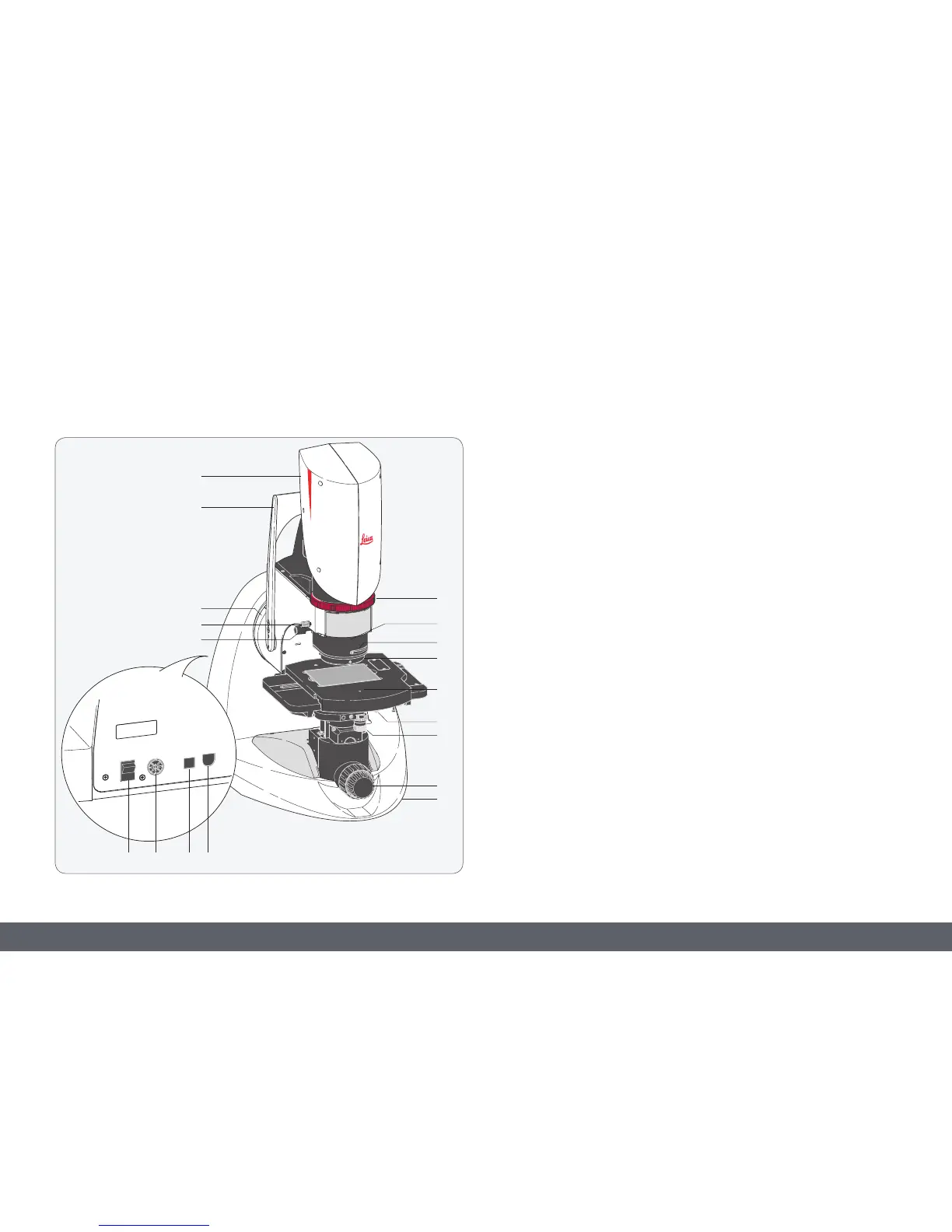

Overview of the Instrument
LEICA DVM6
1
2
3
4
5
6
7
8
9
10
11
12
14
15 16 17 18
13
1. Leica DVM6 (zoom module)
2. Rocker arm
3. Tilting axis
4. Fastening screw for objective
5. Relief contrast controller, on both sides
6. Zoom ring for setting the sample section
7. Objective; three different objectives are available for selection
8. Contrast dial for coaxial incident light illumination,
for PlanAPO FOV 12.55 and FOV 3.60 objectives
9. LED ring light illumination, coaxial illumination
10. XY stage, manual or motorized
11. Table rotation click stop
12. X and Y adjuster wheels, for manual XY stage
13. Focus drive, coarse and fine adjustment, manual
14. Base with tilting stand
15. On/Off switch
16. Power supply connection
17. USB connection
18. Connection for Leica LED5000 SLI external illumination
Instrument Components
