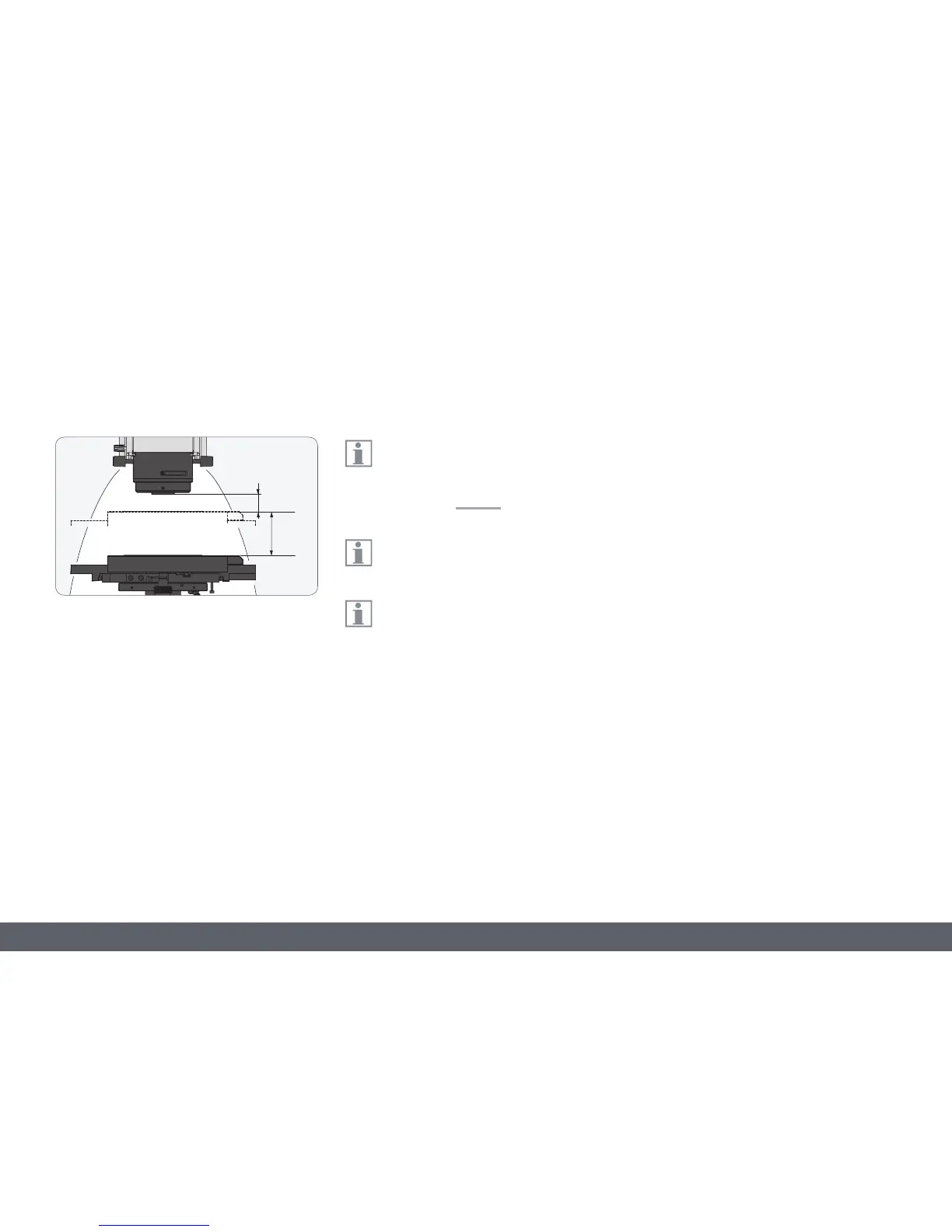

Focal plane
1. XY stage upper edge (in the lowest setting)
2. Maximum XY stage height adjustment
(= focusing range)
3. Focal plane
4. Working distance, for FOV12.55 planapo-
chromatic objective

The working distance for the PlanAPO
FOV 12.55 objective is shown in the
image. You can see the working distance for
other objectives on page 69.

The maximum focusing range is 60 mm.

If the XY stage is in the uppermost posi-
tion, then the focal plane is 2 mm below
the upper edge of the XY stage.
1
2
3
4
