Appendix A: Cables and Pinouts
Optional Audio XLR Cable (CAB-X75HD-XLR)

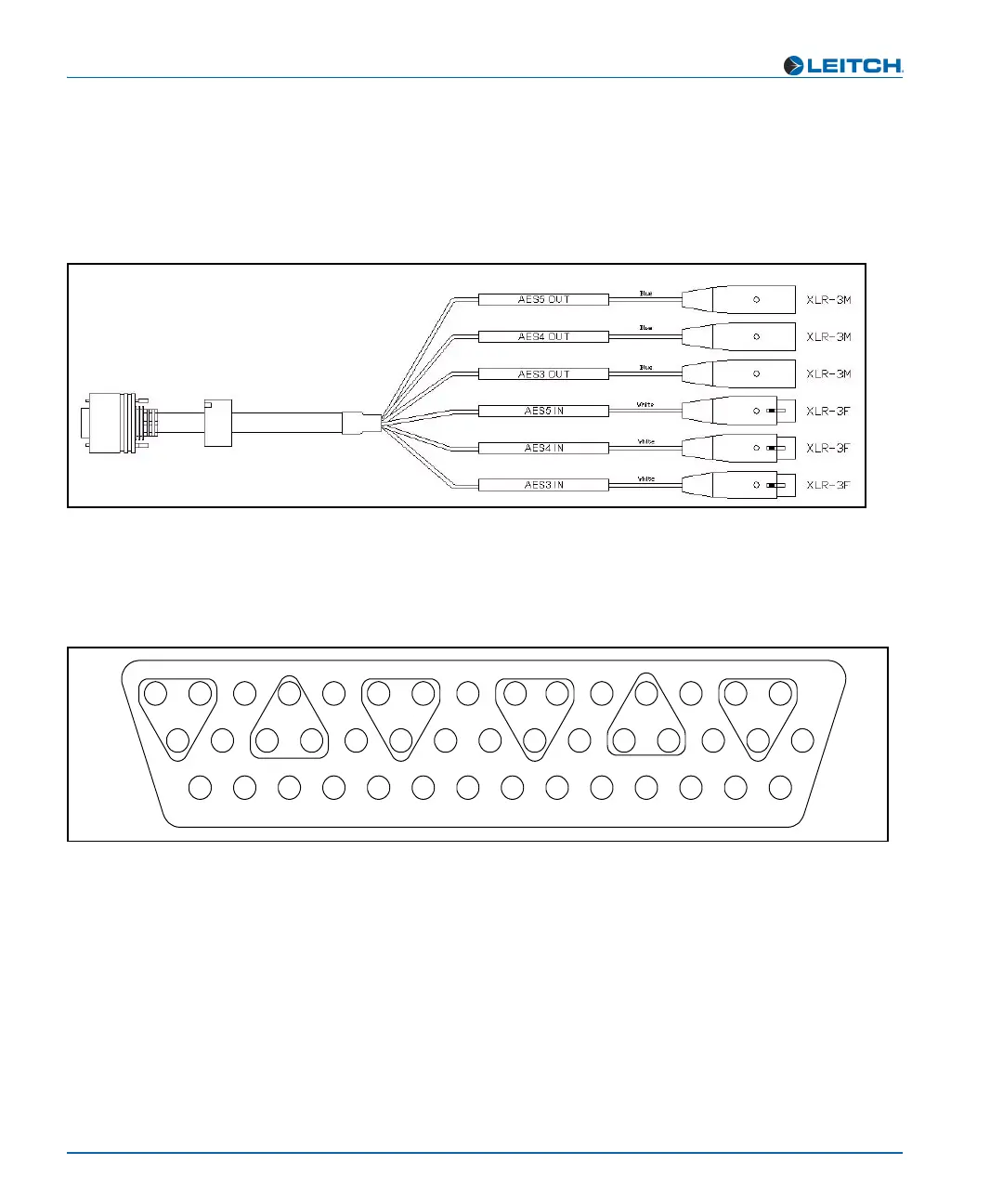

Figure A-13 identifies the cable connectors available on the optional
AES/EBU CAB-X75HD-XLR audio cable, which supports only
balanced audio signals.
Figure A-13. CAB-X75HD-XLR Cable Connectors
Figure A-14 shows the pinouts for the CAB-X75HD-XLR DB-44M
connector.
Figure A-14. CAB-X75HD-XLR Connector Pinout
+ +-
- GG
AES3 in AES3 out
+
G
+- -
G -
+ -
G G
+
AES4 in
AES5 in
AES4 out
AES5 out
Pin 1
Pin 15
Pin 30
Pin 44
Pin 31
Pin 16
