Leitch X75HD - Input Video Processing

X75HD Installation and Operation Manual 25
Chapter 2: X75HD Applications
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Input Video Processing
A variety of common input video processing applications are described
in this section, including the following:
• “Input Video Processing for Mobile, Outside Broadcast Vehicles”
on page 25
• “Critical Input Video Processing for Satellite/Microwave
Reception” on page 26
• “Input Video Processing for News Production” on page 27
• “Ingest Input Video Processing with Audio Decompressing and
Processing” on page 28

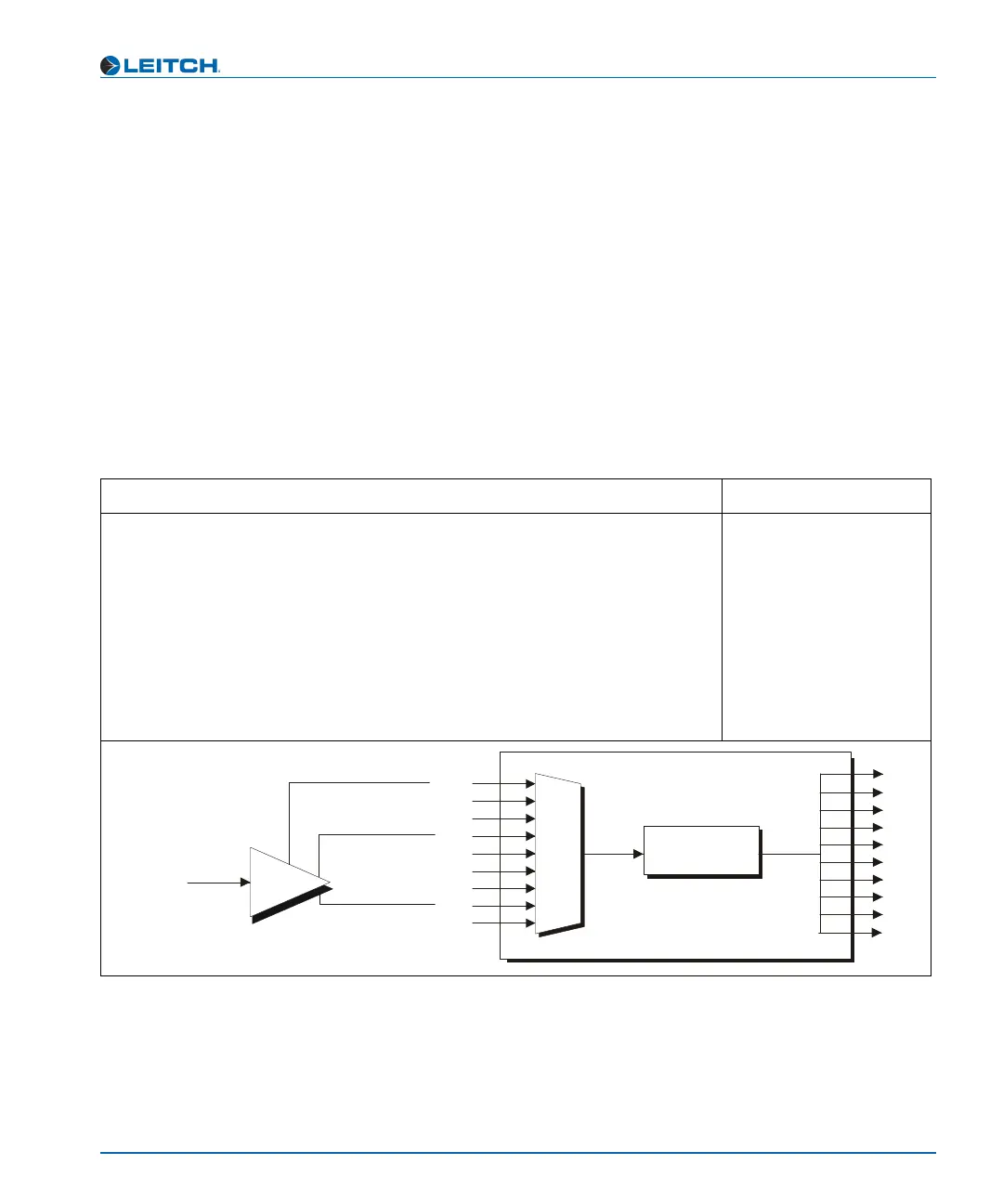

Table 2-1. Input Video Processing for Mobile, Outside Broadcast Vehicles
Description Products
A composite, SD-SDI or HD-SDI input is auto detected and then sent through the
video processing engine to provide multiple types of outputs.
Any composite, SD-SDI or HD-SDI signal is automatically converted to the
required output format. A single BNC connector on the bulkhead of a mobile or
outside broadcast vehicle feeds a wideband distribution amplifier. The wideband
distribution amplifier feeds into the composite, SD-SDI and HD-SDI inputs of the
X75HD. The X75HD is setup to auto-detect any of the three types of inputs and
provide processed video to all of the outputs. The HDTV output can be preset to
provide the required format (for example, 1080i or 720p) for the production.
X75HD with A3D-X75
analog video input option
and INT-EX6X1
CBVS
SYNCHRONIZER,
UP/DOWN/CROSS
CONVERSION
X75HD
SVID
SD1
HD1
HD2
HDF
SD2
DV
CAV
BNC
(BULKHEAD)
INT-EX6X1
AUX
CBVS
SVID
RGB/S
HD
ENET
HDF
SD
DV
CAV
