42 X75HD Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Chapter 3: Module and Back Panel Descriptions
A3D-X75 Module and Back Panel
General Description
The optional A3D-X75 module and associated back panel provides
selectable analog composite, component Betacam (CAV), and s-video
inputs (see Figure 3-4).
The composite input is processed through a high performance
3D-adaptive comb filter. The TBC is always used for s-video input. The
Component analog video input is digitized straight, without decoding,
and then sent down for further processing.
Looking from the rear, this back panel is located in the top, right corner
of the frame, above the dual Ethernet ports.

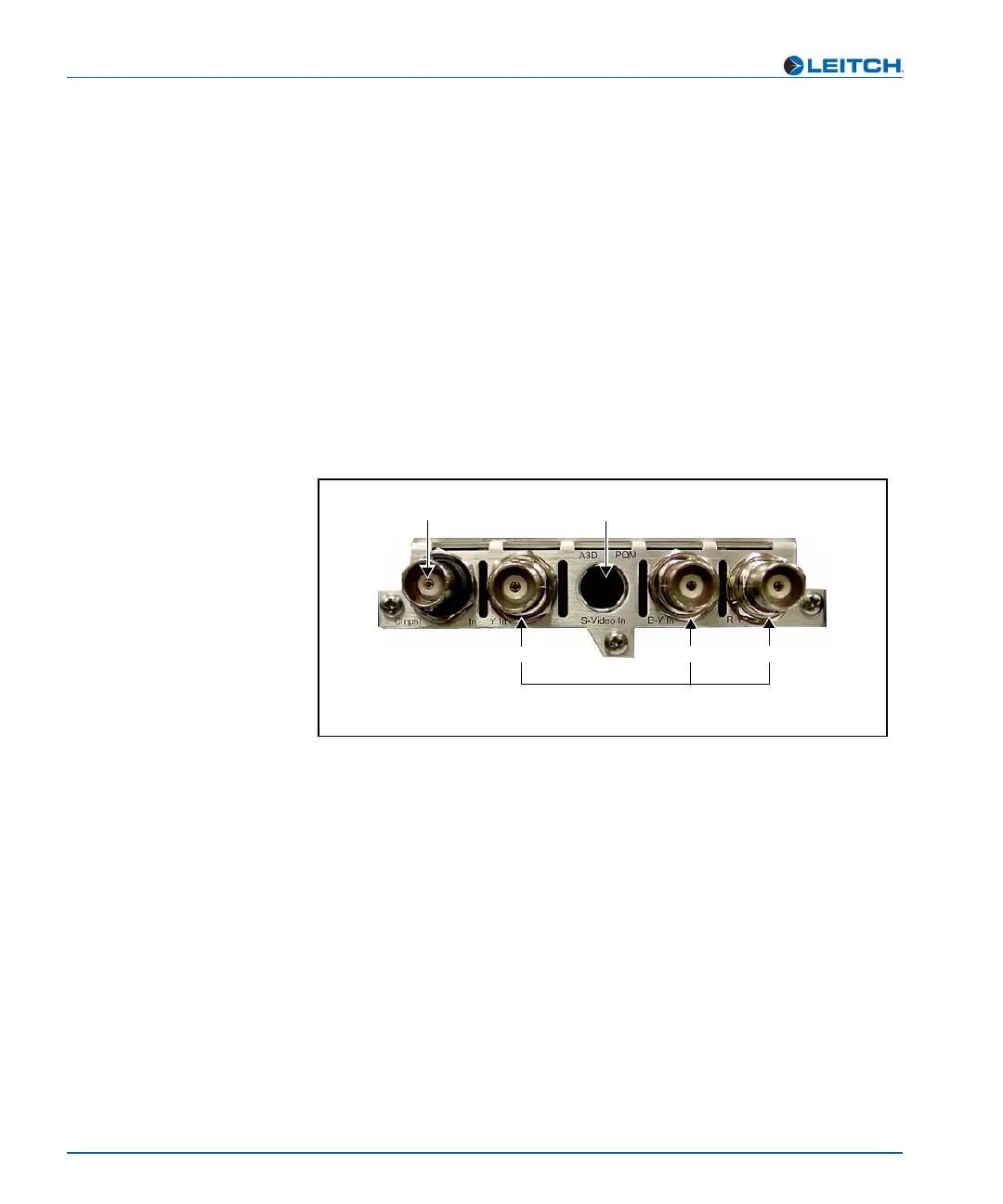

Figure 3-4. A3D-X75 Module Back Panel
This module provides analog video processing for the X75HD. You
require this module to input the analog video types shown in Figure 3-4,
above (including analog composite, s-video, and component Betacam).
This module allows you to access, configure, and enable the analog
video parameters under the Video Setup menu.
Analog composite
video input connector
S-video input
connector
Component Betacam
video input connectors
Y In
B-Y In
R-Y In
