Chapter 3: Module and Back Panel Descriptions
HD-X75 Module and Back Panel
General Information
The HD-X75 module and associated back panel provides two HDTV
coaxial inputs, two HDTV coaxial outputs, one HDTV fiber input, and
one HDTV fiber output. On-board up/down/cross-conversions are
provided and processed through this module.
This back panel is located in the top, middle of the frame (rear-view),
above the Multi I/O and DVI-D ports. The HD-X75 is a standard,
factory-installed module that is shipped with all X75HD systems.

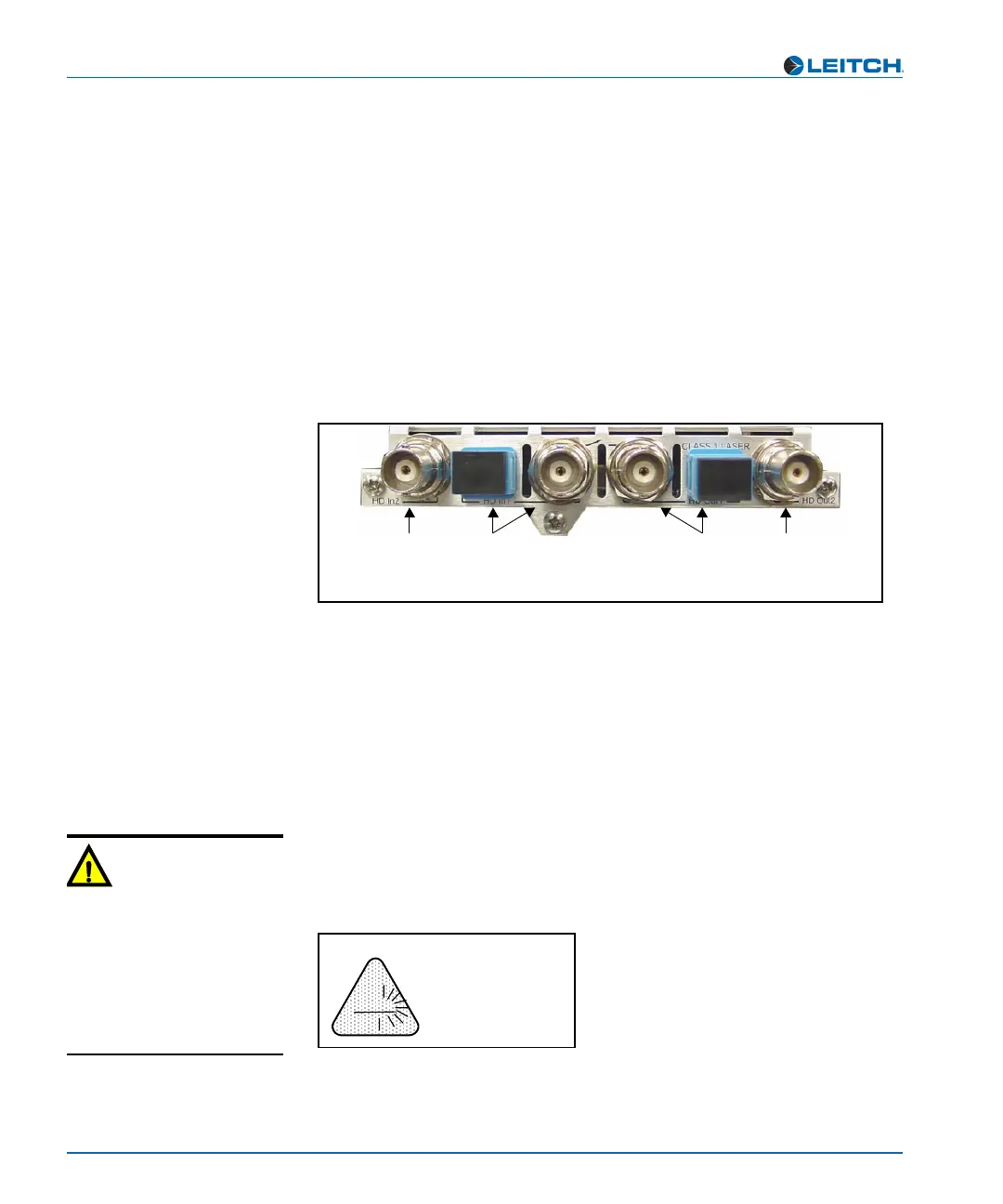

Figure 3-5. HD-X75 Back Panel
This module provides high-definition processing for the X75HD, and
allows both coaxial and fiber inputs and outputs. You require this
module to input and output HDTV and fiber signals. This module
allows you to access, configure, and enable the HDTV input and output
parameters found within HDTV submenus under Video Setup.
Precautions
The HD-X75 fiber optic module is a CLASS 1 laser product.
Avoid looking directly at a laser. Laser radiation is invisible and can
cause serious eye damage.
For more information on handling and connecting fiber optics, see
“Understanding and Working With Fiber Optics” on page 181.
HD In2
HD In1
(includes BNC
and fiber)
HD Out1
(includes BNC
and fiber
HD Out2
Caution
USE OF CONTROLS OR
ADJUSTMENTS OR
PERFORMANCE OF
PROCEDURES OTHER
THAN THOSE SPECIFIED IN
THIS MANUAL MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
LASER
!DANGER!
Class 1 Laser Product
Avoid Direct Exposure
