8.Removethescrew1onthechassisthatsecuresthefrontpanelboardassembly.Then,carefully
removethefrontpanelboardassemblyfromthechassisandpullthesignalcablesofthefrontpanel
boardassemblyoutofthechassis.

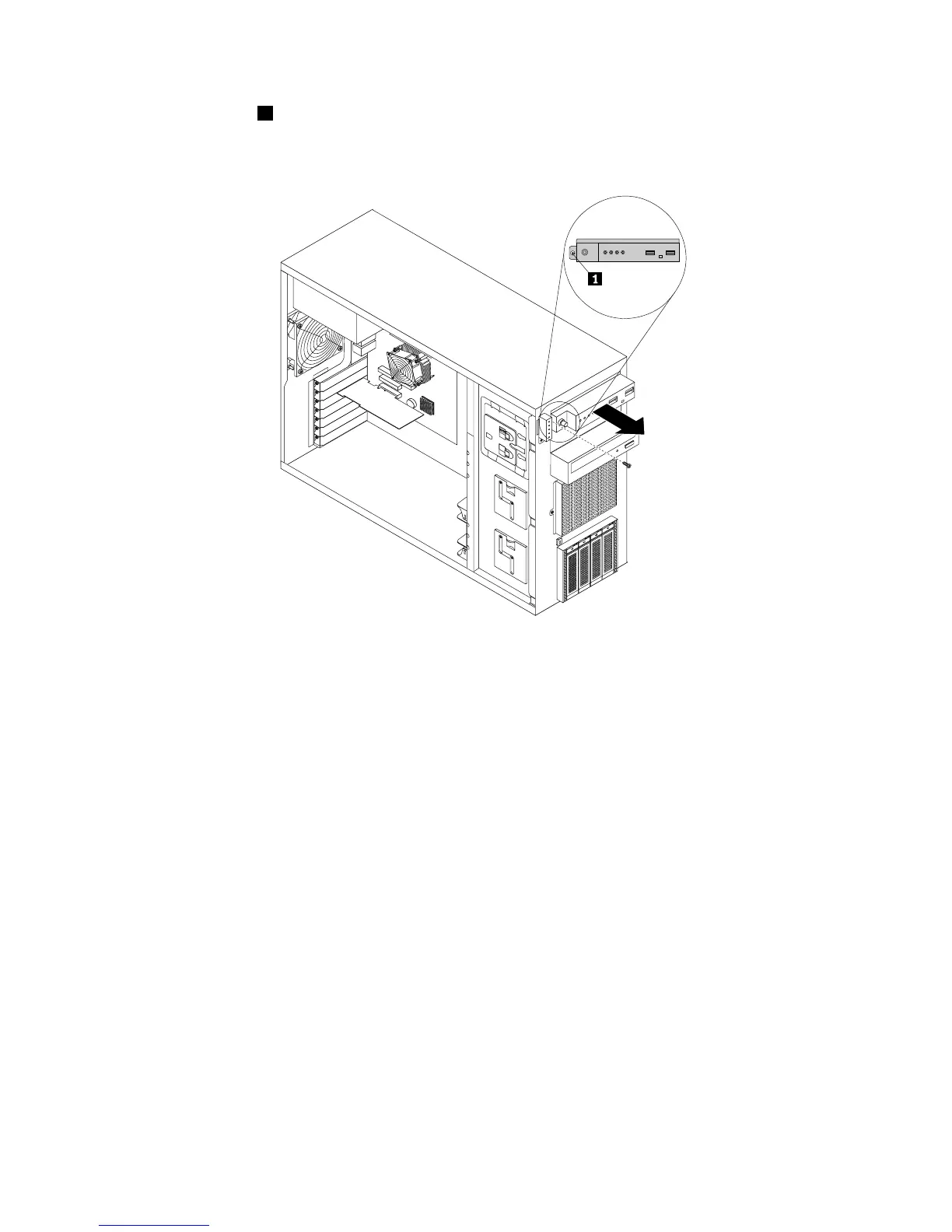

Figure84.Removingthefrontpanelboardassembly
9.Touchthestatic-protectivepackagethatcontainsthenewfrontpanelboardassemblytoanyunpainted
surfaceontheoutsideoftheserver.Then,takethenewfrontpanelboardassemblyoutofthepackage.
10.Notethecableconnection.Then,disconnectthesignalcablesfromtherearoftheoldfrontpanelboard
assemblyandconnectthemtotherearofthenewone.
148ThinkServerUserGuide
