2.Removetheservercover.See“Removingtheservercover”onpage85.
3.Laytheserveronitssideforeasieroperation.
4.LocatetheTPMconnectoronthesystemboardandthenremovetheTPMmoduleinstalledonthe
TPMconnectorbyliftingitstraightup.
Note:CarefullyhandletheTPMmodulebyitsedges.

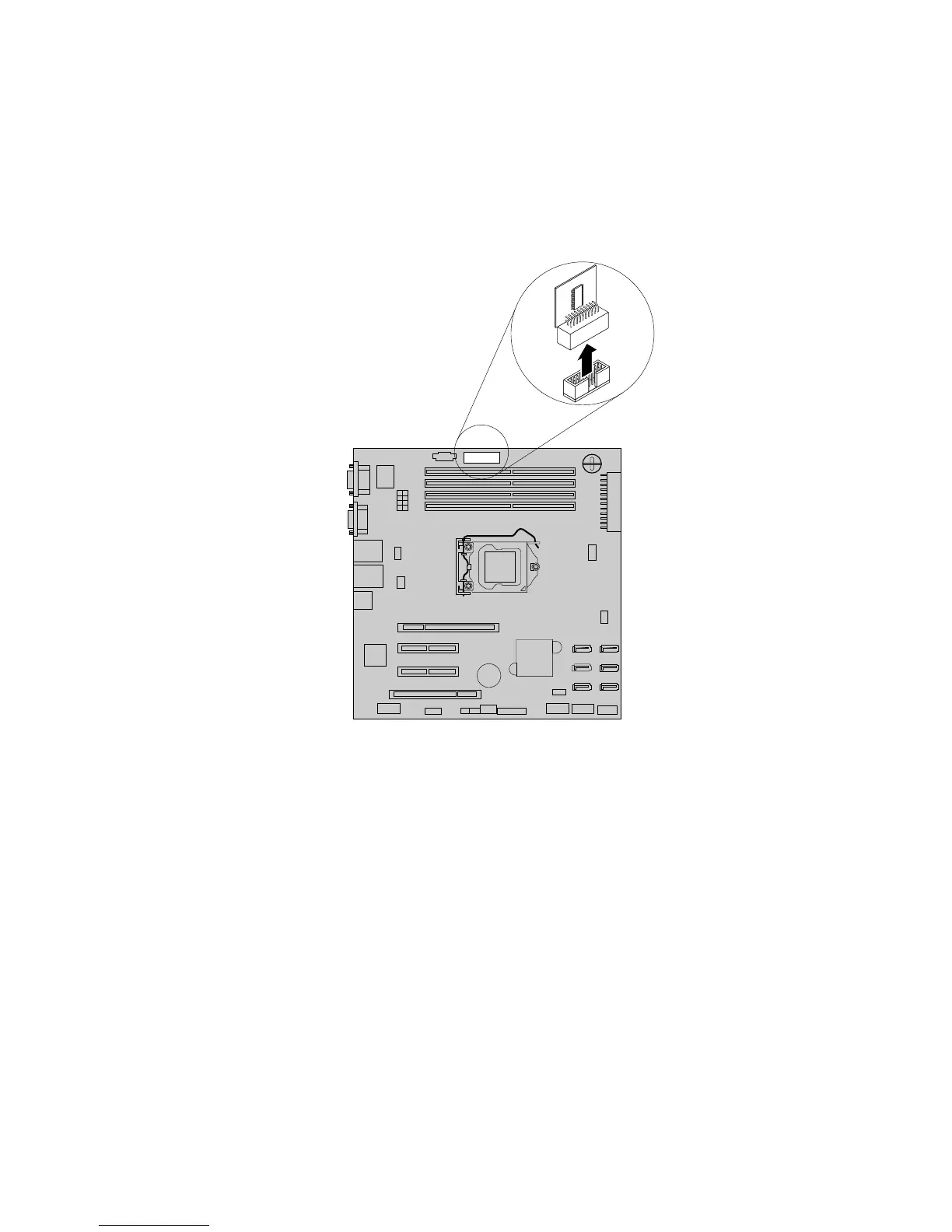

Figure50.RemovingtheTPMmodule
5.IfyouareinstructedtoreturntheoldTPMmodule,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage162.
InstallingorremovingtheDITmodule
ThistopicprovidesinstructionsonhowtoinstallorremovetheDITmodule.
TheDITmodule,whichisonlyavailableinsomemodels,providesdiagnosticLEDsthroughtheDITpanel
tohelpyoueasilyidentifyaproblem.ThediagnosticLEDsontheDITpanelalsovarydependingonthe
installedpowersupply.Formoreinformation,see“DITmodule”onpage18
.
Chapter6.Installing,removing,orreplacinghardware111
