Electrical installation
Regenerative power supply module EMB9343
Control connections
5
123
EDBMB9340 DE/EN/FR 12.0
Wiring
Stop!
ƒ Do not lay control cables in parallel to disturbed motor cables.
ƒ Always shield the control cables as follows:
– Use a screw to connect the shield sheet in the connecting area with the PE
surface.
– Do not use the shield sheet for strain relief!
0
1
A1A2
3959
E1
9340vrm012

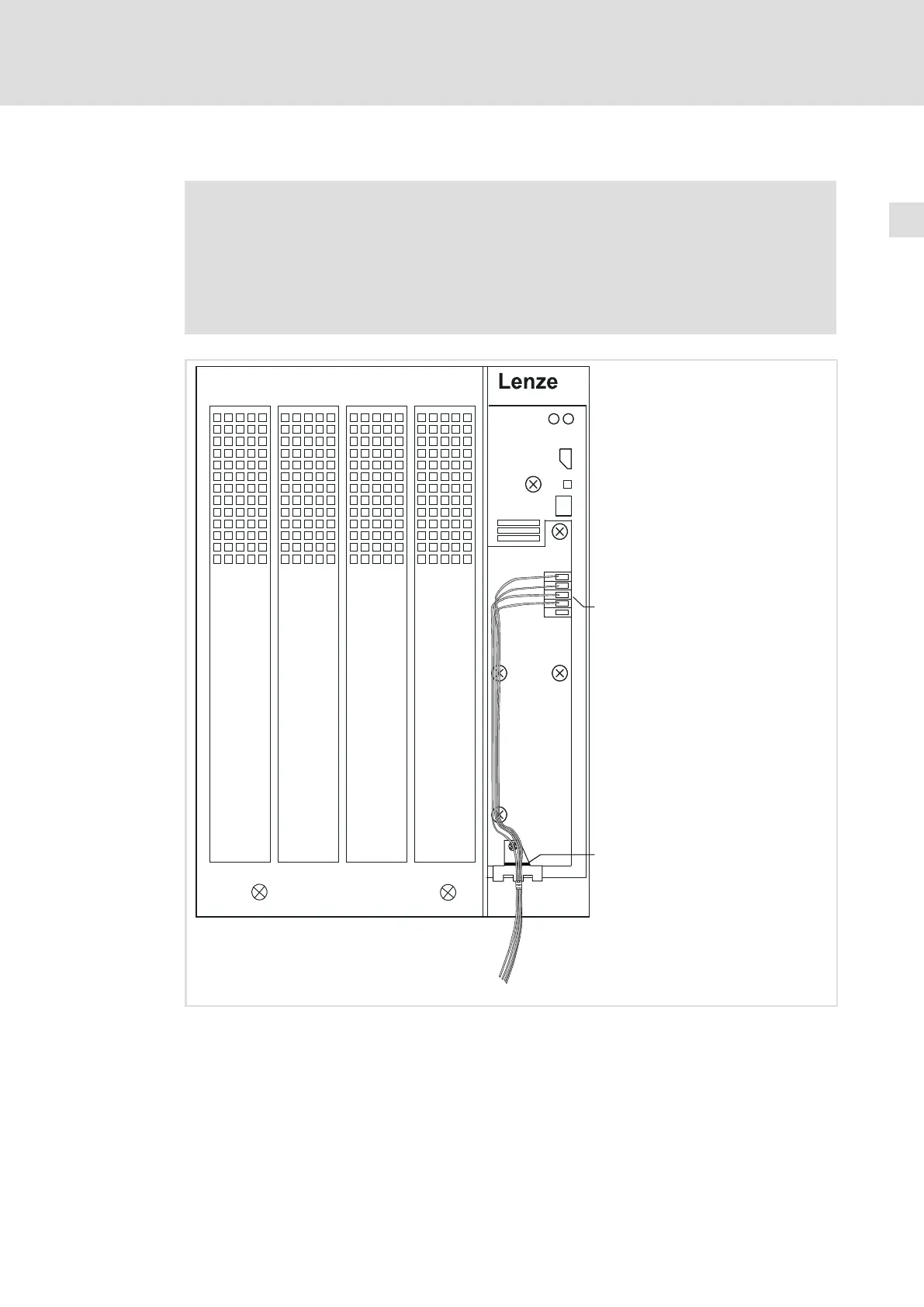

Fig. 5−12 Wiring of the control connection EMB9343
Control connections
Shield sheet of control cable
