Lenze EMB934 Series - Mounting with fixing rails (standard)

Mechanical installation
Regenerative power supply modules EMB9341 and EMB9342
Mounting of EMB9341−E / EMB9342−E with fixing rails (standard)
4

91
EDBMB9340 DE/EN/FR 12.0
4.2.2 Mounting of EMB9341−E / EMB9342−E with fixing rails (standard)
Mounting with fixing rails is only possible with the regenerative power supply module
EMB9341−E and EMB9342−E. The accessories required for mounting is included in the
scope of supply.
Dimensions
b1
b
c
c1
e
a
d
k
g
> 100 mm> 100 mm
9340vrm013

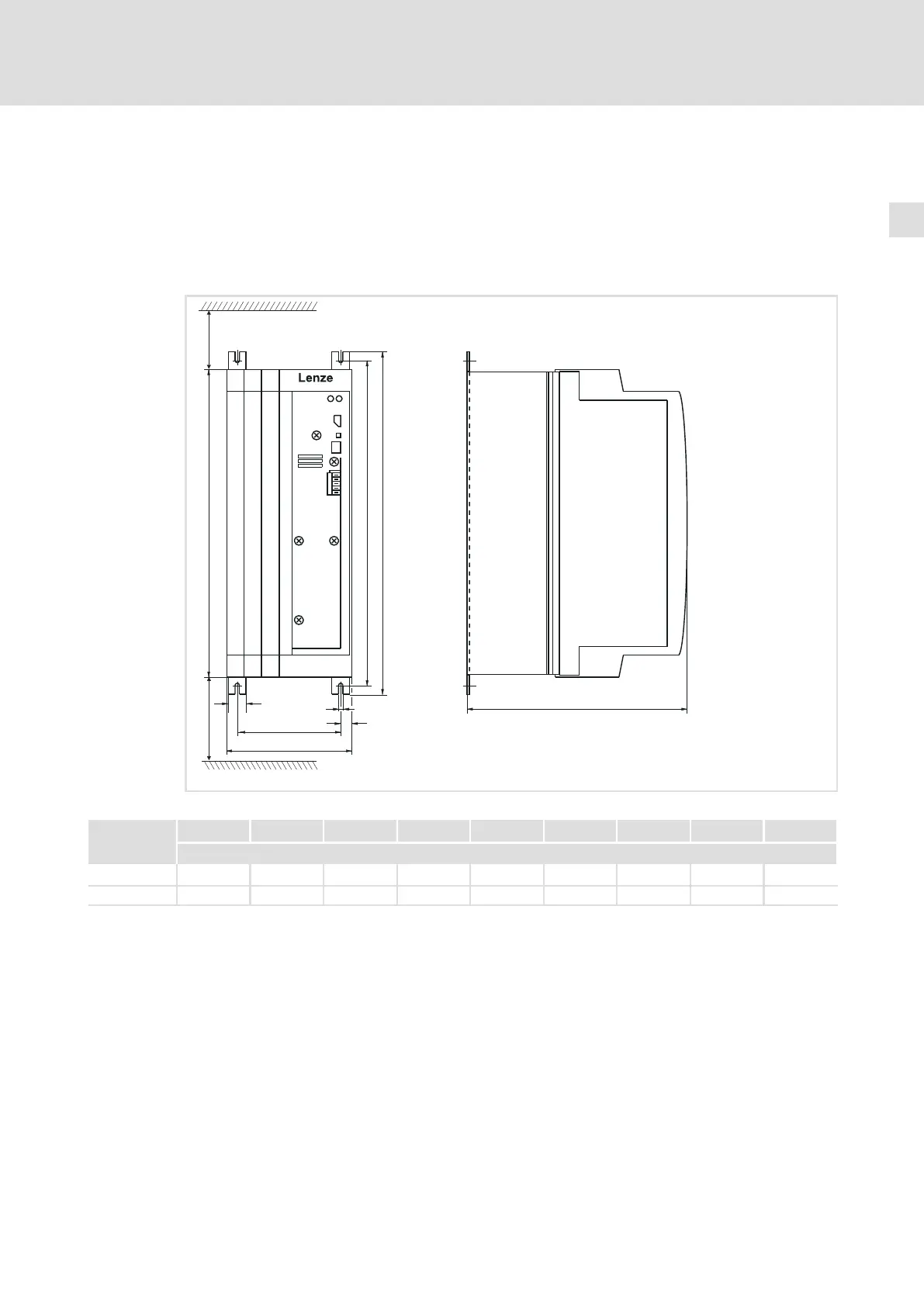

Fig. 4−3 Dimensions of EMB9341−E and EMB9342−E for mounting with fixing rails
a b b1 c c1 d e g k
[mm]
EMB9341−E 135 384 350 21.5 92 365 250 6.5 30
EMB9342−E 135 384 350 21.5 92 365 250 6.5 30
