Mechanical installation
Regenerative power supply module EMB9343
Mounting of EMB9343−E and mains filter with fixing bracket
4
99
EDBMB9340 DE/EN/FR 12.0
4.3 Regenerative power supply module EMB9343
4.3.1 Mounting of EMB9343−E and mains filter with fixing bracket
The accessories required for regenerative power supply module EMB9343−E is included in
the scope of supply.
Note!
For operating the regenerative power supply module EMB9343, a mains filter
(accessories) is required.
ƒ in systems with UL approval: mains filter EZN3A0055H045U
ƒ in systems without UL approval: mains filter EZN3A0055H045
Dimensions
> 100 mm
> 100 mm
c
d2
d3
d4
d1
b
a
a1
e2
e3
e1
e
h
g
L
9340vrm014

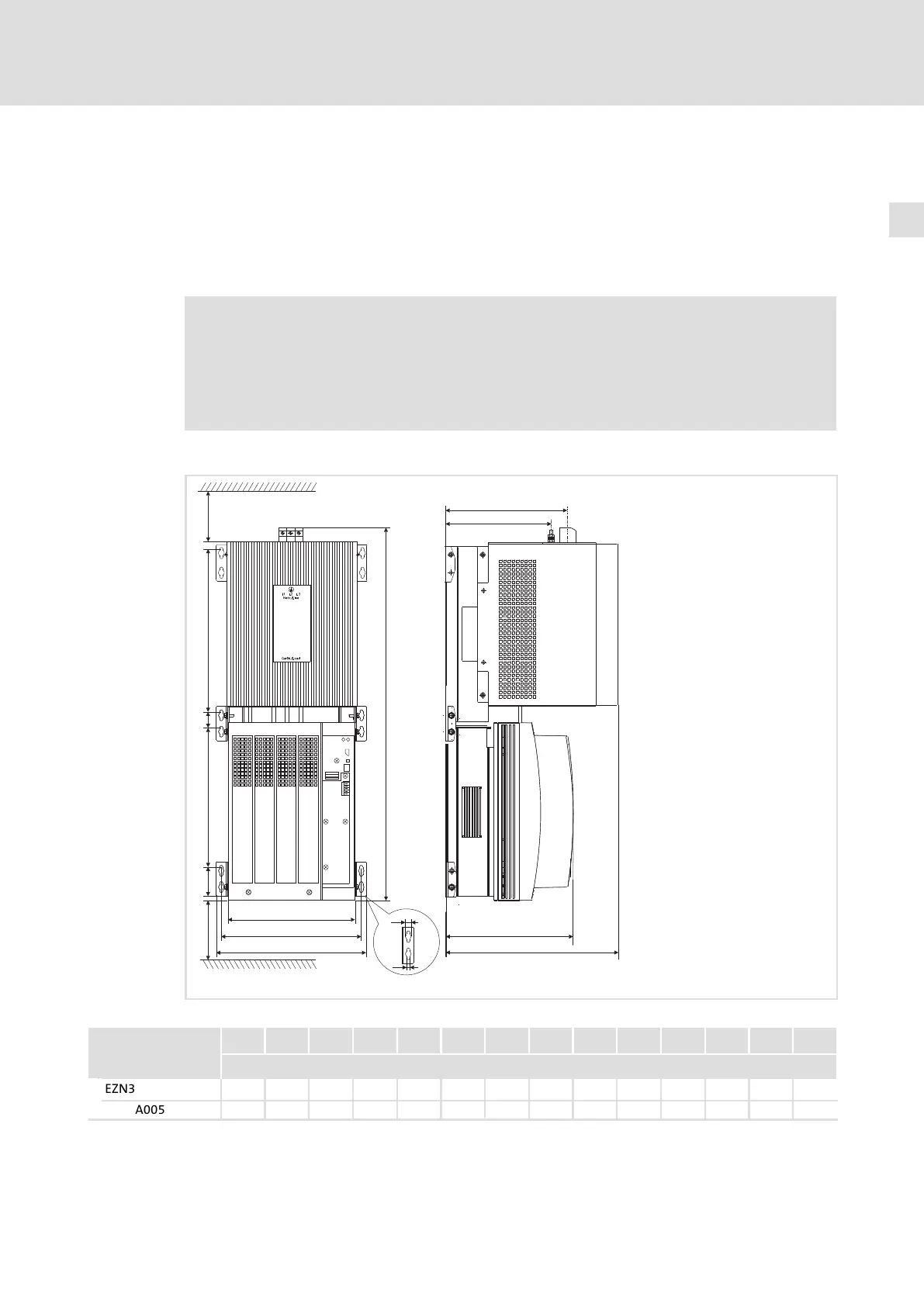

Fig. 4−6 Dimensions of EMB9343−E with mains filter for mounting with fixing brackets
EMB9343−E
With mains filter
type
a a1 b c d1 d2 d3 d4 e e1 e2 e3 g h
[mm]
ÑÑ
ÑÑ
EZN3A0055H045U 280 250 720 258 22 300 38 300 308 250 185 215 6.5 11
ÑÑ
ÑÑ
EZN3A0055H045 280 250 720 258 22 300 38 300 285 250 185 215 6.5 11
