Mechanical installation
Regenerative power supply modules EMB9341 and EMB9342
Mains filter mounting
4
89
EDBMB9340 DE/EN/FR 12.0
4.2 Regenerative power supply modules EMB9341 and EMB9342
4.2.1 Mains filter mounting
Note!
For operating the regenerative power supply module, a mains filter
(accessories) is required.
ƒ Regenerative power supply module EMB9341: mains filter EZN3A0120H012
ƒ Regenerative power supply module EMB9342: mains filter EZN3A0088H024
Dimensions
PE L1 L2 L3
LINE
PE L1 ' L2 ' L3'
LOAD
92
245
230
260
15
135
230
7
80
105
> 100 mm
> 100 mm
9340vrm017

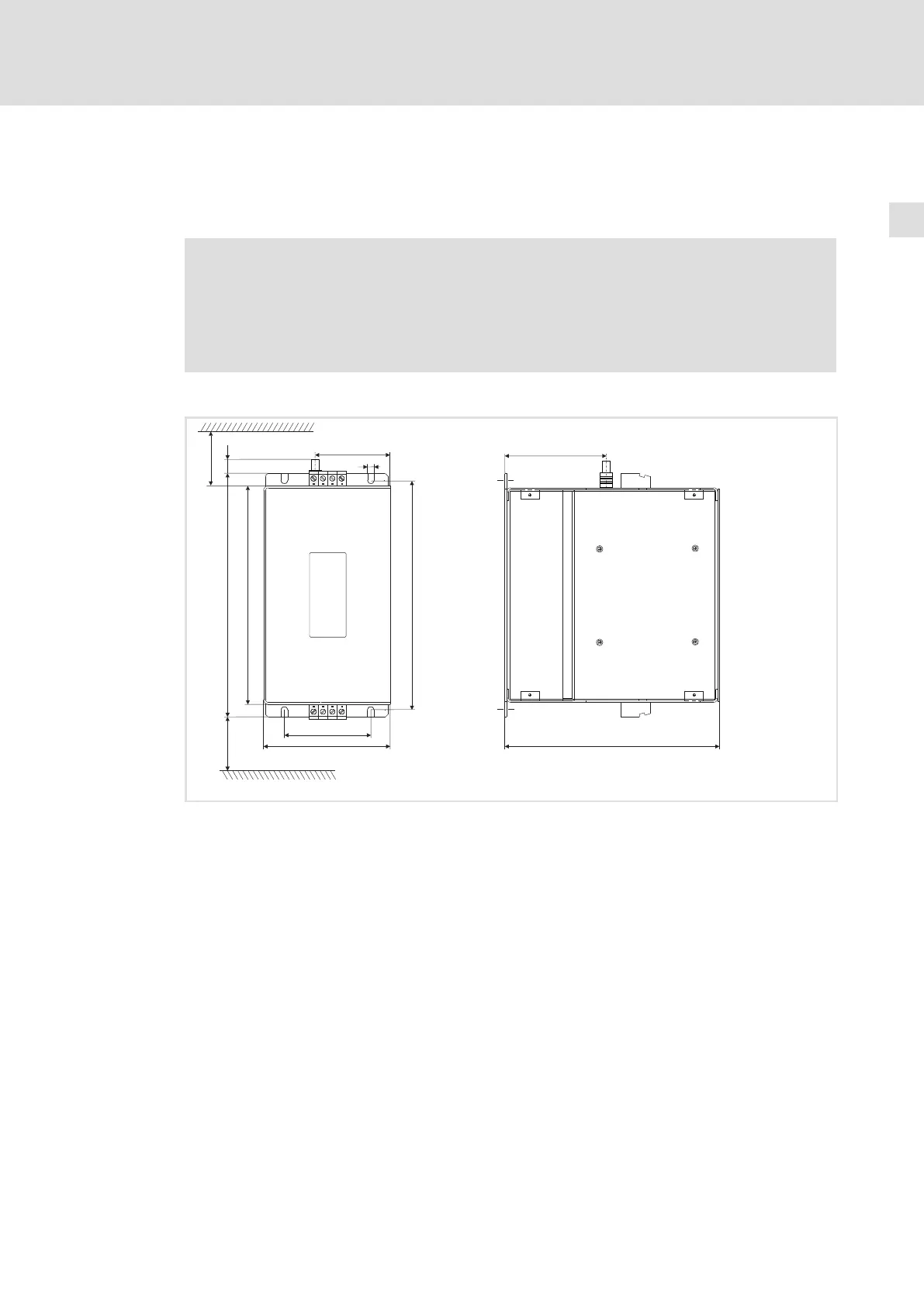

Fig. 4−1 Dimensions of mains filter EZN3A0120H012 for EMB9341
All dimensions in millimetres.
