Wiring of terminal strips
8
Electrical installation
8.3
l
8.3-1
EDSPM-TXXX-3.0-04/2004
8.3 Wiring of terminal strips
Stop!
Insert the screw driver only into the rectangular opening of the
terminal strip !
Using force to insert the screw driver into the round opening for
the cable will destroy the spring-mounted terminal !
2
01
6mm
< 2.5mm²
> AWG 14
_
_
_
_
< 1.5 mm²
> AWG 16
epm-t060

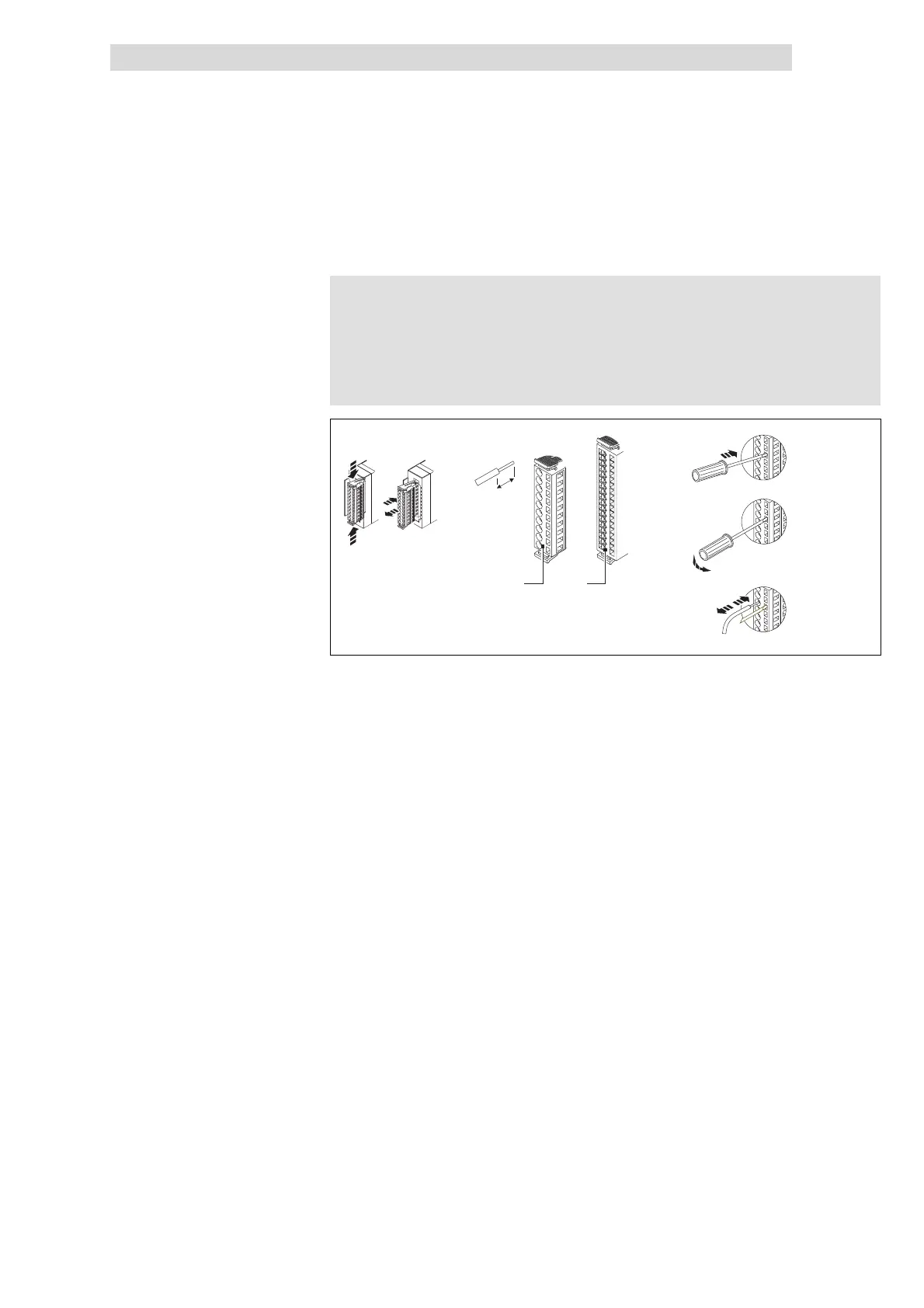

Fig. 8.3-1 Wiring of the terminal strips
Plugging and unplugging the terminal strip
Stripping length and max. permitted cable cross-section
Wiring of the terminal strip
c Insert a suitable screw driver into the rectangular opening
d To open the contact spring, press the screw driver in the shown direction
andholdinposition
e Insert the stripped core into the round opening. By removing the screw
driver, the wire is securely connected to the terminal strip via a spring
contact
