2/4×counter
5
The modular system
5.13
l
5.13-1
EDSPM-TXXX-3.0-04/2004
5.13 2/4×counter
The module 2/4×counter detects the pulses of the connected encoders and
processes these pulses according to the mode selected. The module has two
32-bit counters or four 16-bit counters. Each 32-bit counter has a digital output
which can be triggered depending on the mode.
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
Two 32-bit counters or four 16-bit counters
z
One freely configurable digital output per 32-bit counter with an output
current of 0.5 A
z
Counter and compare registers loaded via control byte
z
Up / down counter, optionally with a channel width of 32 or 16 bits
z
Compare and Auto Reload functionality
z
Various modes for encoder pulses
z
Period and frequency measuring
z
LED displays status of the inputs and outputs
0
1
2
epm-t015

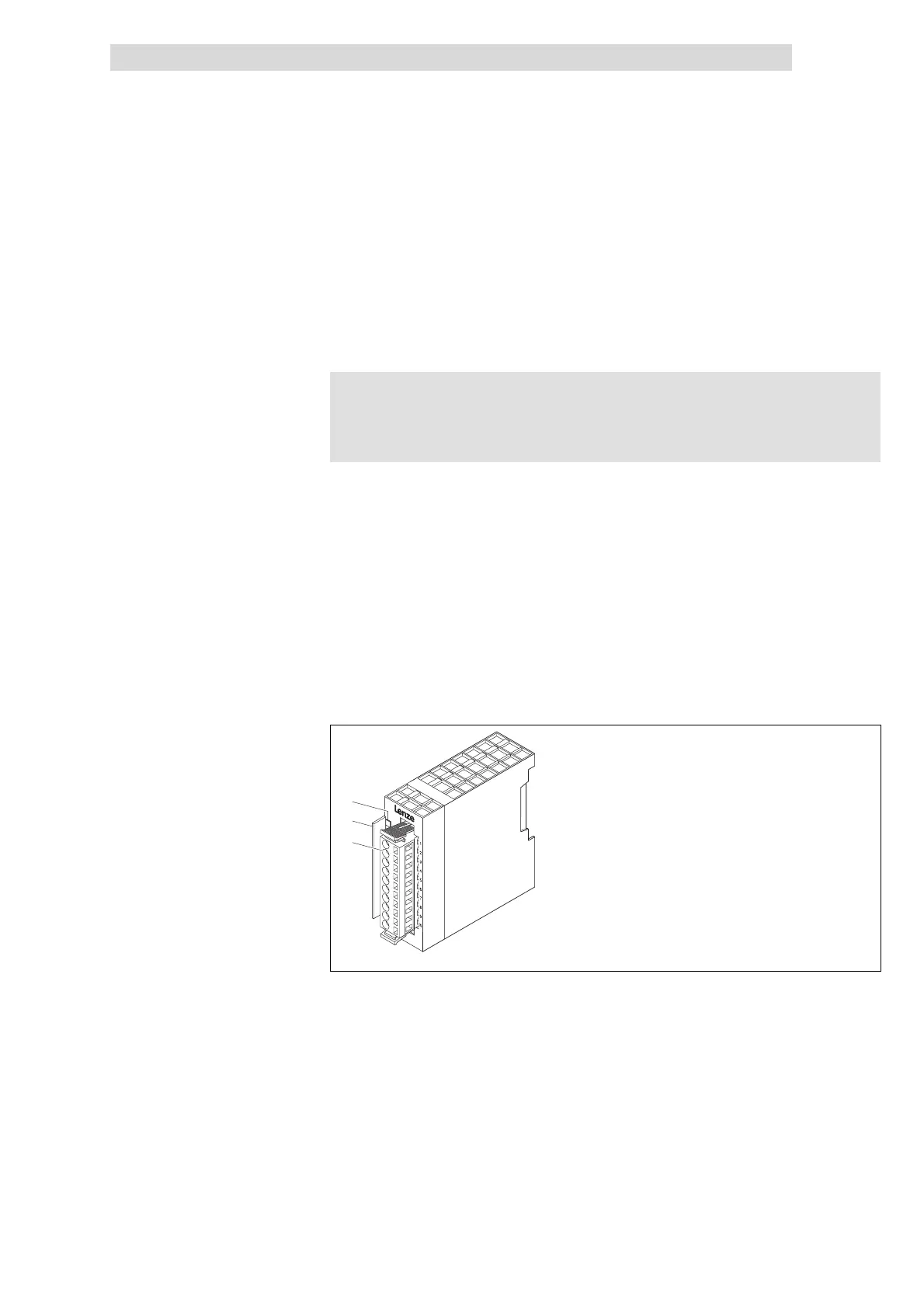

Fig. 5.13-1 Overview of 2/4×counter
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
