The compact system
7
Mechanical installation
7.3
l
7.3-2
EDSPM-TXXX-3.0-04/2004
Mounting
CLACK!
1
4
3
2
40
60
01
epm-t057

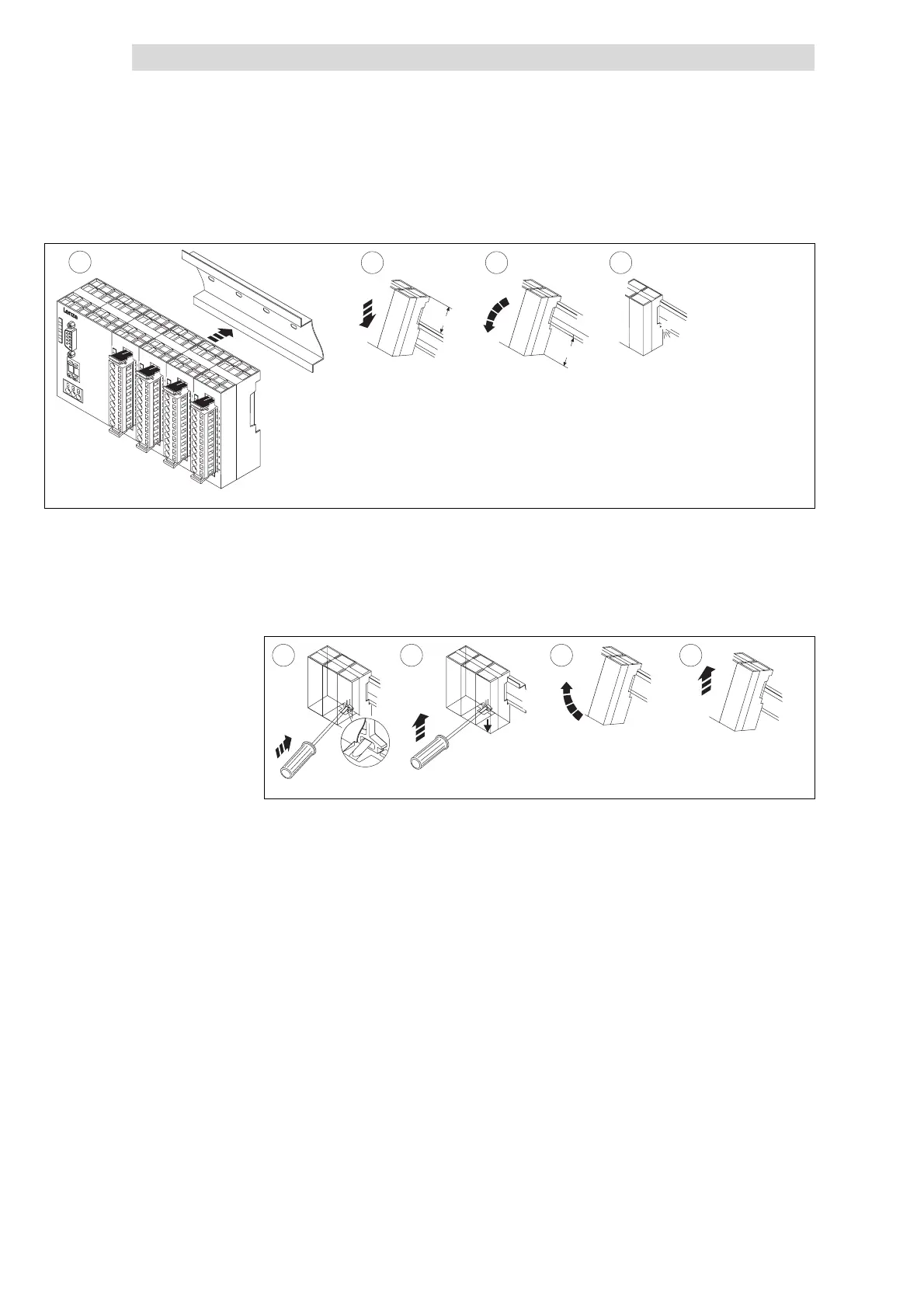

Fig. 7.3-2 Mounting the module on the DIN rail
c Mount the DIN rail to allow the module an installation clearance of min. 60 mm
at the top and min. 40 mm at the bottom.
d Lower the module on to the DIN rail at an angle of approx. 45 °
e Turnthemoduledownward
f Allow the module to audibly engage with the DIN rail
1
4
3
2
epm-t058
Fig. 7.3-3 Remove the module from the DIN rails
c Insert the screw driver into the withdrawal slot
d Press the screw driver upward to disengage the module
e Pull the module towards the front by its bottom edge.
f Remove the module from the DIN rail by pulling it upwards.
Disassembly
