12.5 Parameterising SSI interface
12.5.1 Parameter data
The following can be defined via the parameter data of the SSI interface:
z Baud rate
z Coding type
z Evaluation of the combined E/A.0
For the SSI interface, four bytes of parameter data are available, which are
assigned via SDOs.
Depending on the plug-in station, the SSI interface is parameterised via the indices
I3001
h
... I3010
h
(max. 8 SSI interfaces). The parameter data are stored inthe
subindex 1.
epm-t173

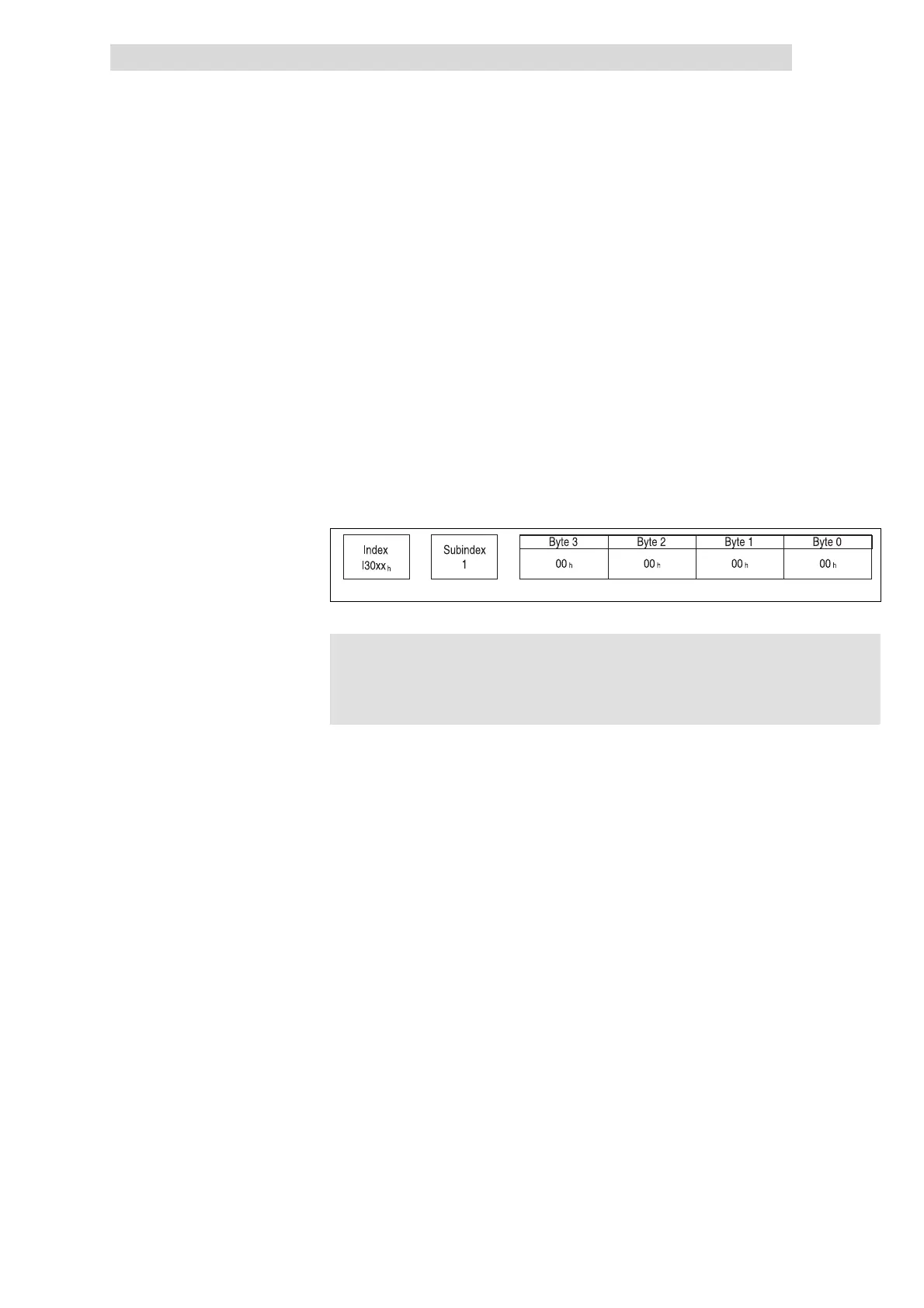

Fig. 12.5-1 Display of the parameter data of the SSI interface


 Note!
Store changed parameters in the EEPROM via index I2003
h
.The
settings are maintained after switching off the supply voltage.
