5.9 8×digital input / output
The channels of the module 8×digital input / output can be used either as digital
inputs or outputs. The digital inputs or outputs are supplied via an external voltage
source.


 Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z 8 digital inputs or outputs at option
z DC 24 V supply voltage
z Each digital output has a capacity of up to 1 A
z LED shows the status
0
1
2
epm-t015

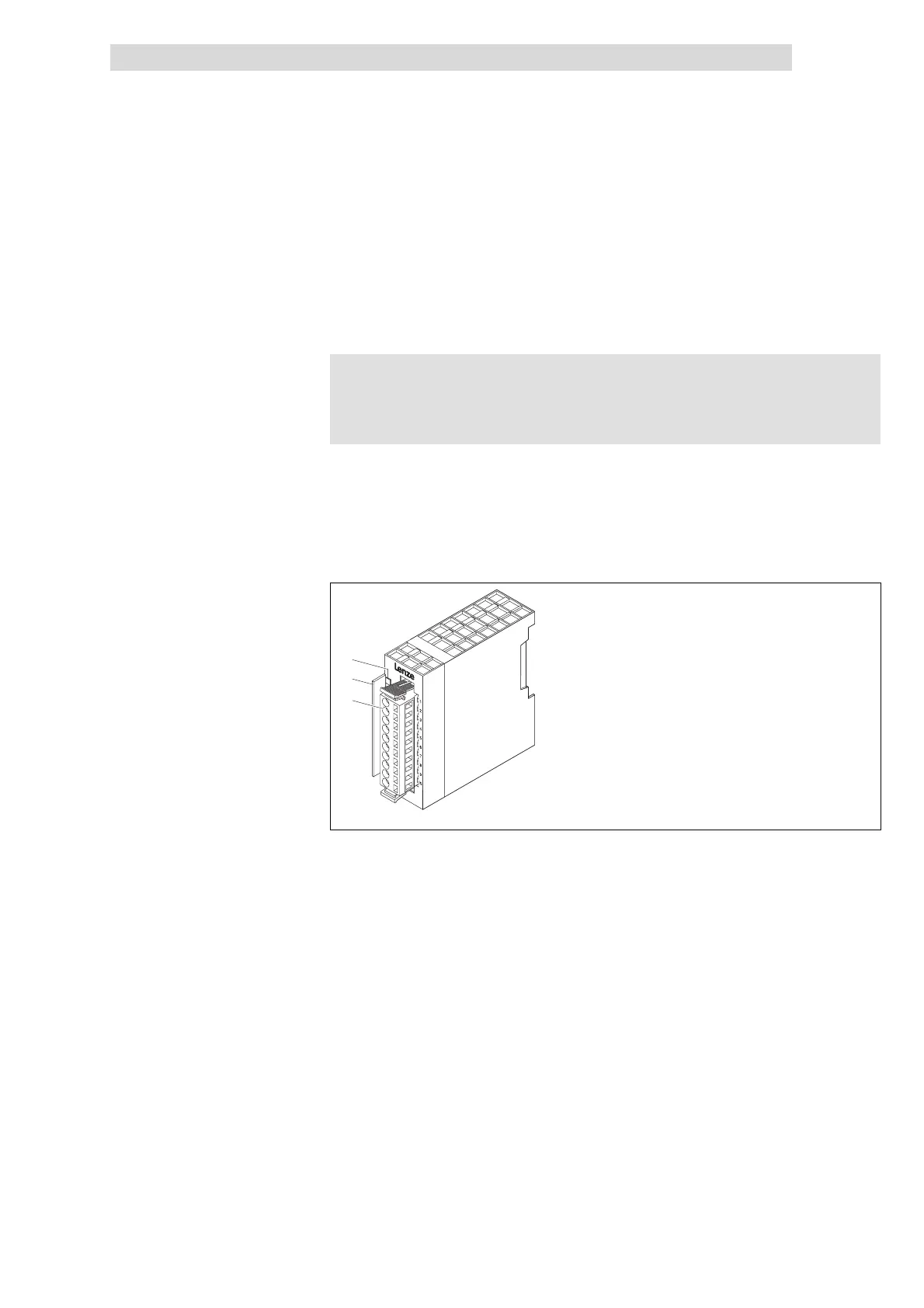

Fig. 5.9-1 Overview of 8×digital input / output

LED for status display

Bit address label card

Plug-in terminal strip
Description
Features
Overview
