Lenze EPM-T110 - Fig. 12.4-17 Counter Access of the 24 Xcounter in the Mode

Parameterising 2/4xcounter module
2 x 32 bit counter with GATE (mode 35)
12
Parameter setting
12.4
12.4.18
l
12.4-52
EDSPM-TXXX-3.0-04/2004
epm-t161

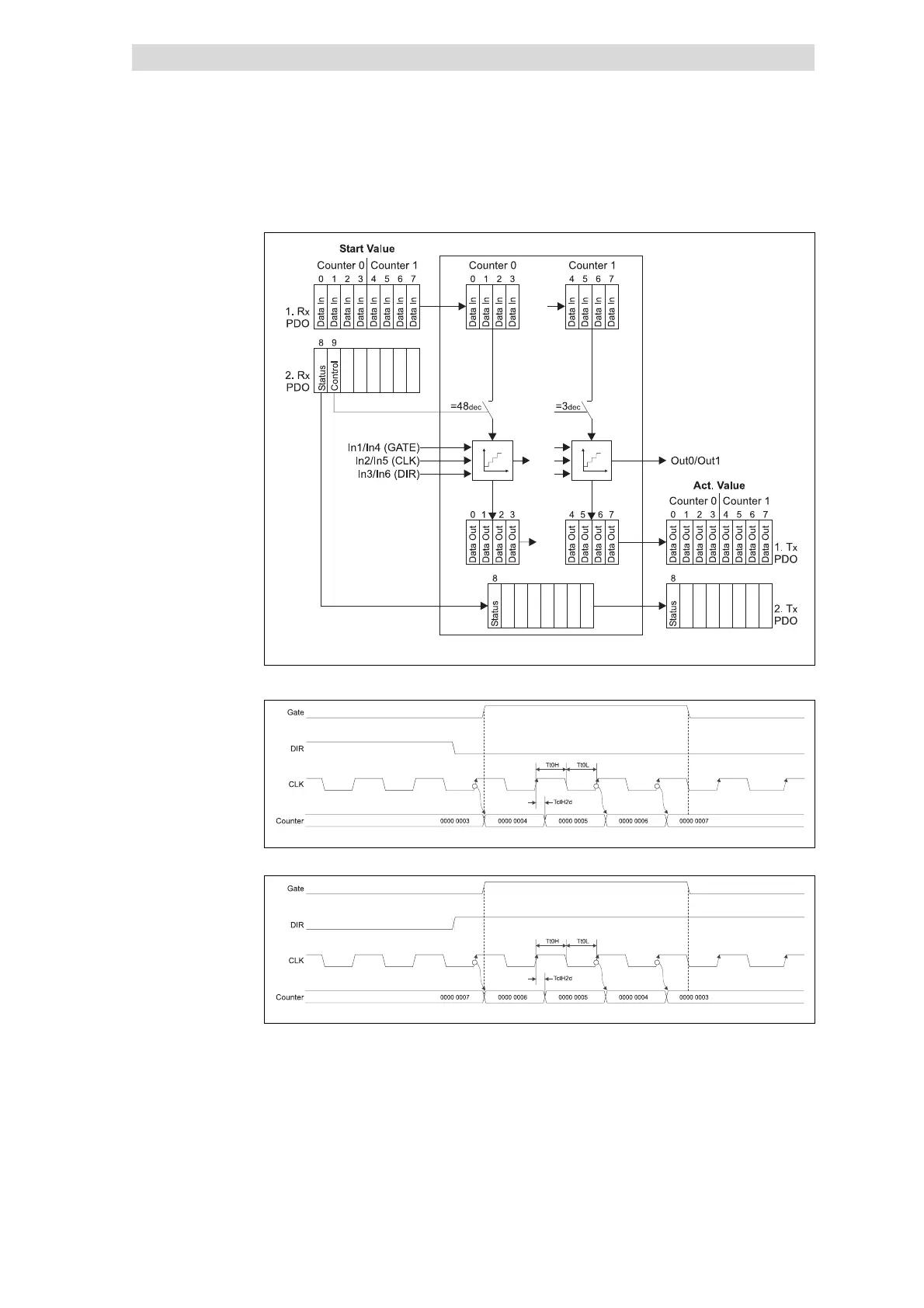

Fig. 12.4-69 Counter access of the 2/4xcounter in the mode 35
epm-t162
Fig. 12.4-70 Signal characteristic of 2/4xcounter in the mode 35 (upcounter)
epm-t163
Fig. 12.4-71 Signal characteristic of 2/4xcounter in the mode 35 (downcounter)
Counter access
Signal characteristic
