Parameterising 1xcounter/16xdigital input module
Input data / output data
12
Parameter setting
12.6
12.6.2
l
12.6-2
EDSPM-TXXX-3.0-04/2004
12.6.2 Input data / output data
epm-t192

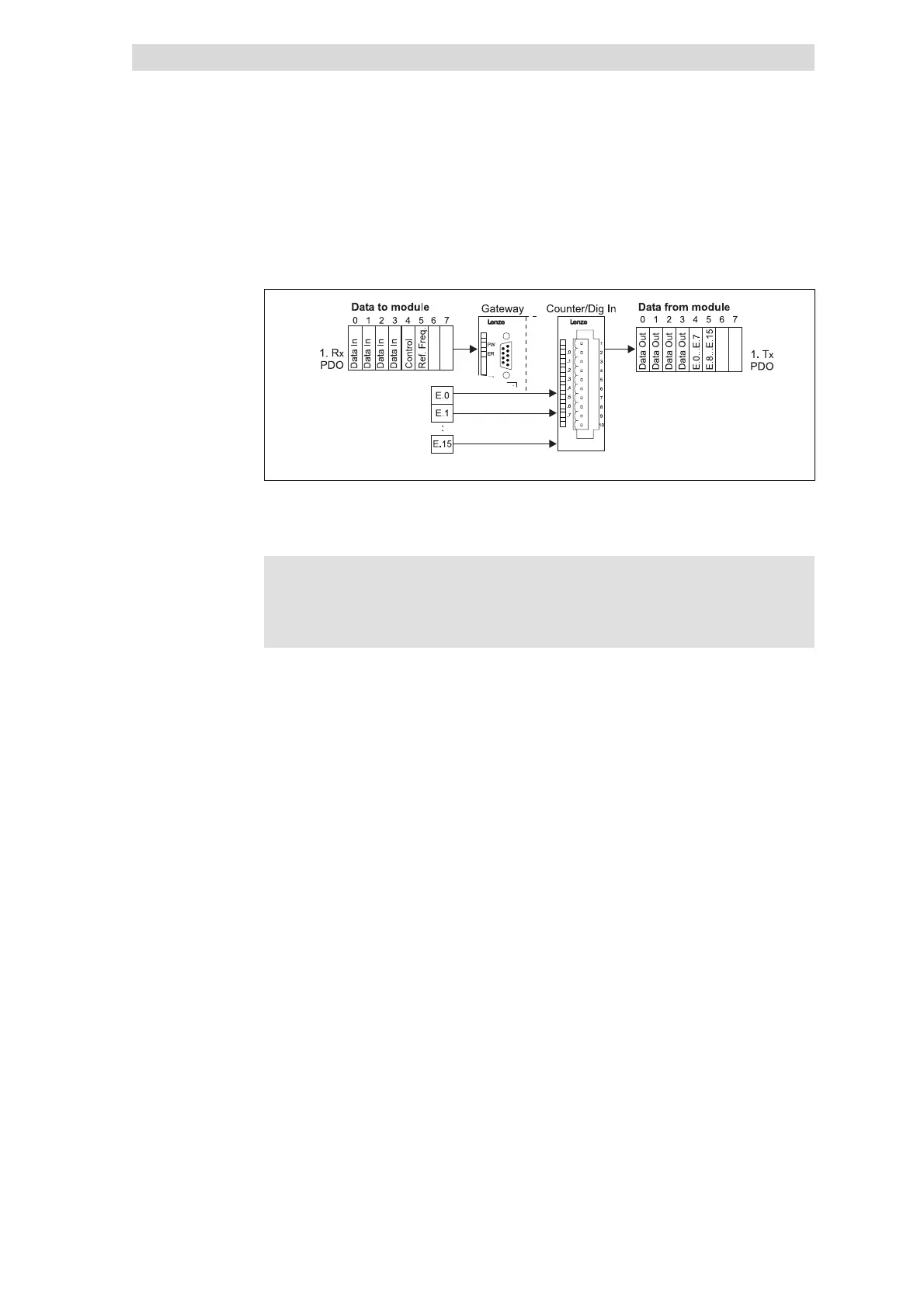

Fig. 12.6-2 Data input / data output 1xcounter/16xdigital input
For data input / output, six bytes are available which are transmitted via a PDO to
the counter (Rx PDO) or output by the counter (Tx PDO).


 Note!
Input and output data get lost when the mains supply is switched
off/on; they are not stored!
